> New comet uhv-6 hf/50/144/430 multi whip mobile antenna
New comet uhv-6 hf/50/144/430 multi whip mobile antenna

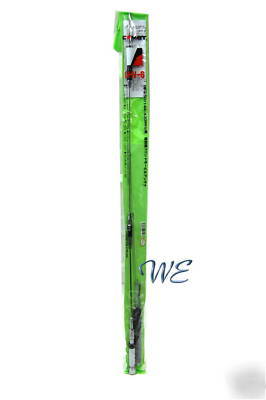

NEW Comet UHV-6 HF/50/144/430 Multi Band Whip Mobile Antenna
Comet UHV-6 is Comet's 3rd generation HF - UHF mobile antenna and it's the best! Without the HF coils attached, the UHV-6 is a tribander for 6M/2M/70cm. The top of the element has a threaded socket for attaching either the 40M(7Mhz), 15M(21Mhz) or 10M(28Mhz) coil that comes with it making the UHV-6 a quad-band antenna! Want more HF bands?? Simply add an additional 1 or 2 HF coils(optional, not include in the set) horizontally using the threaded sockets in the ring around the top of the element! Optional elements for 80 meters (L-3.5, 3.5Mhz), 20 meters (L-14, 14Mhz) or 17 meters (L-18, 18Mhz) . Each HF coil tunes independently to the part of the band you want to operate.
2:1 VSWR bandwidth is approximately:
Unlike the screwdriver antennas that are expensive and difficult to mount, the UHV-6 is easy. If you have an existing antenna on your vehicle that has a sturdy mount with an SO-239 connector, simply take it off and put the UHV-6 on! You are on the air! AND, the UHV-6 is a wave on 2M: 2.15dBi gain over a wave and it's 2 5/8 waves in phase on 70cm: 5.5dBi gain.
The fold-over hinge on the UHV-6 is a strong hinge protected by a threaded collar. Unscrew the collar and lift it up to expose the hinge, very convenient when entering garages, parking structures, drive-thru's, etc.
Gain: 2.15dBi(50/144Mhz), 5.5dBi(430Mhz)
Max. Power: 120W(7-28Mhz) SSB, 200W(50/144/430)SSB
Wave: 1/4 wave(7/21/28Mhz), 1/2(144Mhz), 2x 5/8 wave(430Mhz)
