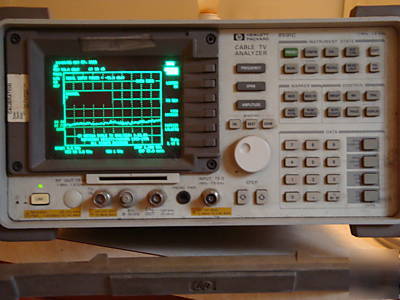

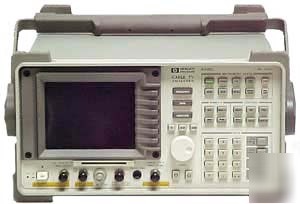

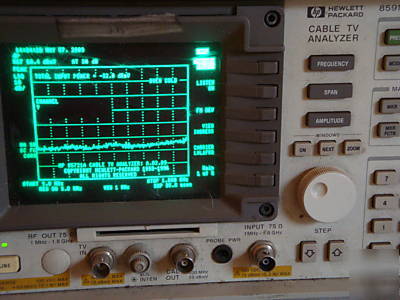

Hp agilent 8591C cable tv analyzer 1 mhz - 1.8 ghz
Manufacturer: HP Agilent CaLan 8591C cable TV analyzer
The 8591C Cable TV analyzer provides dedicated non-interfering RF and video measurements in a durable, economical instrument. The one-button measurements can be used for flexible troubleshooting or to test the entire system automatically at the touch of a button. The flexible hardware and software design lets you easily upgrade the analyzer to accommodate changes in required measurements and measurement techniques. For added flexibility, NTSC format is standard, with options available for worldwide PAL and SECAM formats and frequency plans.
Spectrum Analyzer 1 MHz to 1.8 GHz
Twenty-millisecond RF sweep time
plus/minus 1.5 dB frequency response accuracy
One-button FCC proof of preformance CATV measurements
Rugged, portable, weather-resistant package
Protective soft yellow carrying case included
0 Hz (zero span), 1 MHz to 1.8 GHz
Peak power - +72 dBmV (0.2 W), input attenuation >10 dB, DC - 100 V
86-127, or 195-253 Vrms, 47-66 Hz 103-126 Vrms, 400 Hz +10%
213 mm (8.4'') H x 366 mm (14.4'')
Yellow Carry case is included. List Price $14,500 when new.
