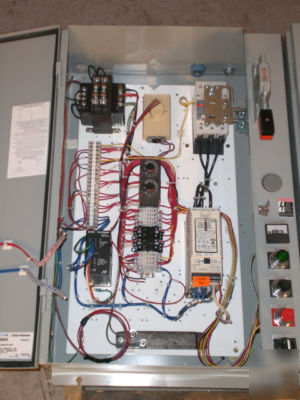

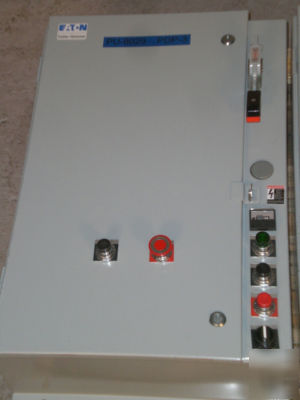

Cutler hammer enclosed electrical control panel
Cutler Hammer Enclosed Electrical Control Panel
Click below to see more photos.
http:// /ProductDetails.asp?ProductCode=TL-EB-01
Brand/ Manufacturer: Cutler Hammer
CONDITION: Excellent with light surface scratches on box.
Type 12 (Conforms to IP62) for Indoor Use
Provide a degree of protection from dripping liquids (non-corrosive), falling dirt and dust.
Designed to meet tests for drip, dust and rust resistance.
Hole plugs cover pilot device holes.
1.0 Standard Duty Service Factor
Combination IT Soft Starter/w Circuit Bkr.
150V A Control Power Transformer
120V secondary with 110/120V Input Voltage Control Power Supply
ETM Wired Across Coil NEMA 1/NEMA12
P1- Push to Test Pilot Light (Red RUN) wired to coil
P2- Push to Test Pilot Light (Green OFF) wired in series with auxillary contact.
If you have any questions, please feel free to call our office. (1-888-4 Toollab).
If you would like more pictures, please email me.
