Amlok pneumatic rod clamp cylinder pn:rcn 063150CSM1
Amlok Pneumatic Rod Clamp Cylinder PN:RCN 063150CSM1

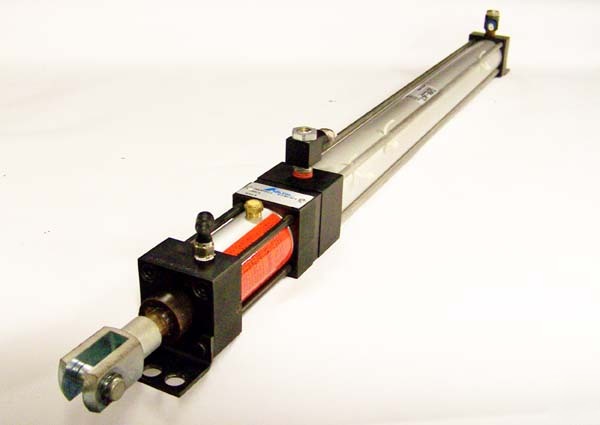

This is a Used Amlok Pneumatic Rod Clamp PN: RCN 063150CSM1. RCN consists of a hard anodized aluminum housing with a special piston and wedge locking mechanism actuated by a spring that mechanically locks the rod. This item was pulled from a working environment but has not been tested by us. Cosmetically, the item is in good condition with minor wear. The photos show a typical unit for sale. Only what is shown in the photos is included.
* Square Head - Tie Rod Design
* Maximum Operating Pressure - 160 PSI Air
* Required Release Pressure - 60 PSI Air
* Operating Media - Filtered Compressed Air
* Operating Temperature - Standard 10 F to + 180 F
* Cycle Rate: maximum five times per second.
* Holding Force - 200 LBs (Axial holding forces were established after 2,000,000 fatigue test cycles.)
* Some linear movement may occur after clamp is fully engaged
