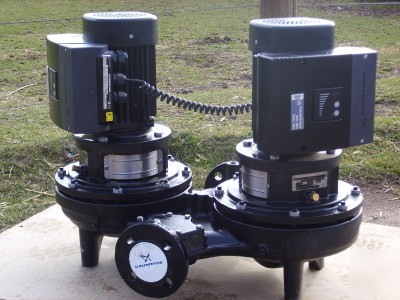

New grundfos 1000 tped 32-100/4 1PH 32MM twin pump
GFOS 1000 TPED 32-100/4 1PH 32MM TWIN Single-stage, centrifugal, in-line, twin-head pump.
The in-line design with opposite suction and discharge ports enables mounting in pipework or on a concrete foundation.
The shaft seal is a corrosion resistant maintenance-free mechanical seal.
The pump is fitted with an IEC-flanged single-phase MGE motor with frequency converter and PI-controller integrated in the motor terminal box. No additional motor protection is required as both motor and electronics are protected by integrated overload and temperature protection.
External sensor can be connected if controlled pump operation based on for example flow, differential pressure or temperature is required.
A cable ensures communication between the two pumps. The selector switch in the terminal boxes enables changeover between the operating modes "alternating operation" and "standby operation".
A control panel enables setting of required setpoint as well as setting of pump to MIN or MAX operation or to STOP. The control panel has indicator lights for "Operation" and "Fault".
