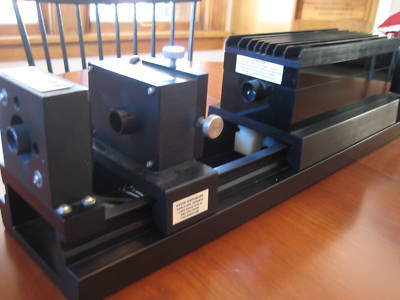

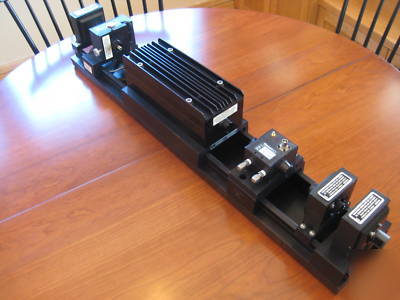

Control laser holobeam 512 q-switched nd:yag 1064NM
This laser is spec'd to provide 50 watts multimode, or 6.5 W Tem00. Due to the size of the rod (4x75mm), I think it can probably provide slightly more than spec.
Single Transverse Mode Selector
This consists of an aperture to produce the desired diffraction limited output when properly positioned in the optical cavity of the laser system. This mode selector also has a shutter built in to stop lasing activity.

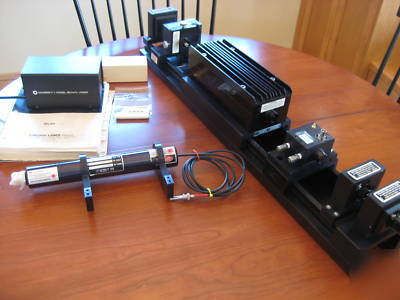

The laser also includes a helium neon HeNe aiming laser. This is shown in one of the pictures. It mounts to the side of the laser via 2 screws.

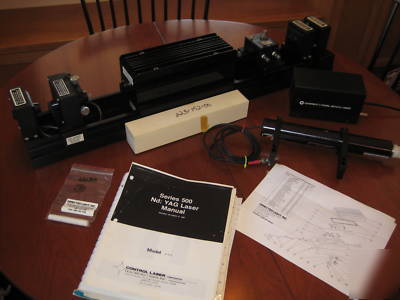

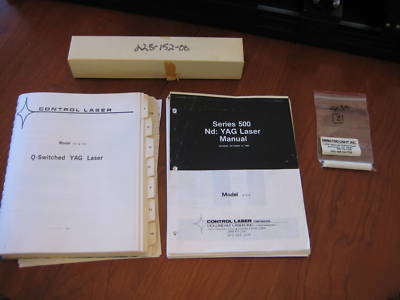

This laser is in excellent condition. Included is a NEW flashlamp for this laser, as well as a new FLOWTUBE.
Single Krypton Lamp Pumped, Continuous Wave CW, Nd:Yag laser System
Single Ellipse Polished 24K Gold Optical Cavity
Mirror Mounts: Cast Inverted Trihedral-Slot-Flat, Direct Drive Design, Providing True Orthogonal Fine Tuning
Q-Switched Operation provides for 'Peak' Power Pulses in excess of 25 KW

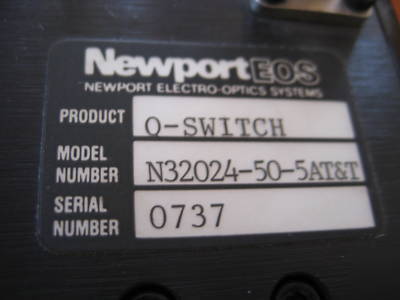

Newport N32024 50 Watt 24 Mhz Acoustic Optic Q-Switch
50 Watts Multimode Output at 1064nm
6.5 W Tem00 Single Transverse Mode 1064nm
6mRad Divergence (Multimode) or <2mRad Tem00
