Baileigh r-M55 roll bender angle ring rolling machine
R-M55 Check out the video: http:// /videos/roll-bender-rm-55-videos.php Click here for capacities and specifications: http:// /benders/ring-angle-bender-rm55.php

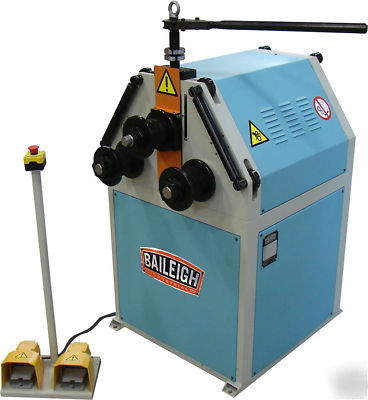

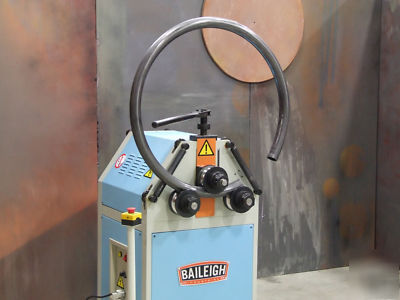

Baileigh s R-M55 ring roll bender is a very robustly built and powerful pipe roller capable of bending up to 2 Schedule 40 pipe.
This can be used in any fabrication shop or out in the field on job sites, considering it only requires 220 volts of single phase power to operate.
It can be operated in both the vertical mode for small rolling projects, as well as in the horizontal
mode for large rolling projects as there are feet on the bottom and back of the machine.
This pipe roller has a motor to direct drive gear transmission for positive transfer of power to the drive rollers.
The transmission is overload protected by a variable speed inverter drive unit.
The variable speed is controlled by a speed pot and becomes very handy when rolling various types and sizes of metal section.

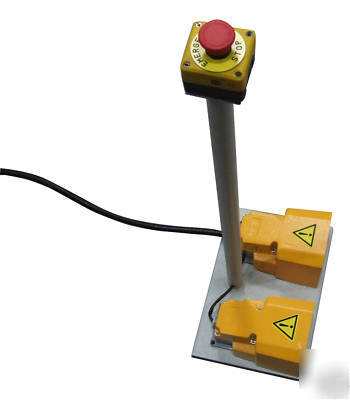

This ring roll bender comes standard with foot pedal controls, segment rolls, and lateral roll guides that are very handy when coiling is required.

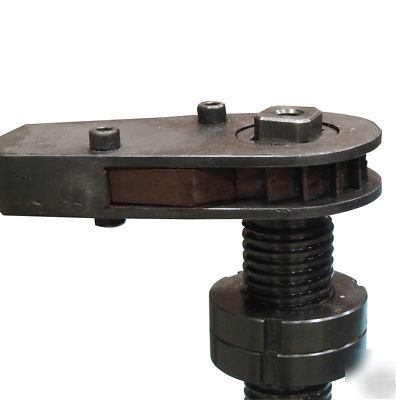

The top roll position is manually descended and the position is indicated on a scale for repeatable bends every time.
Optional rolls can be purchased for different profiles like tubing, pipe, angle iron and much more.
Baileigh ring rollers are built to a very high quality standard using only the best components on the market.
Our powered models come with heavy steel plate frame designs, heavy bases, and industrial grade transmissions with overload protection as standard.
Baileigh ring rollers offer more quality for the investment and will perform decades of service.
