20 x analog devices ADG709BRU multiplexer (2 x 4:1)

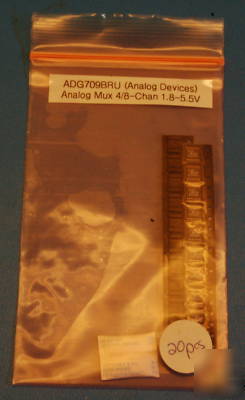

Lot of twenty (20) Analog Devices ADG709BRU low-voltage CMOS analog multiplexer comprising 8 single channels and 4 differential channels. The ADG709 switches one of 4 differential inputs to a common differential output as determined by the address lines A0 and A1 (an Enable input is provided).
* Supply voltage: 1.8V to 5.5V ( 2.5 V)
Download datasheet here: ADG708_709.pdf.
