Heathkit dx-35 radio cw transmitter with manual
Heathkit DX-35 Radio CW Transmitter with Manual

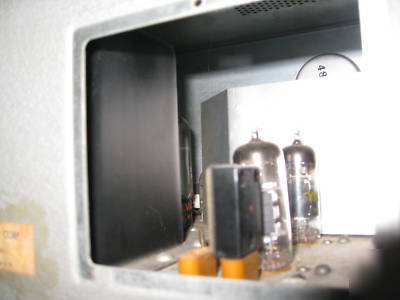

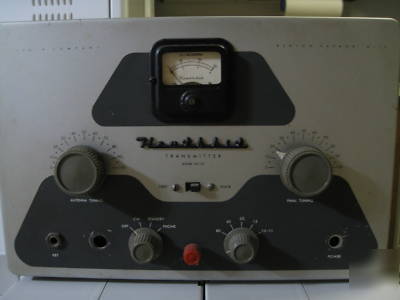

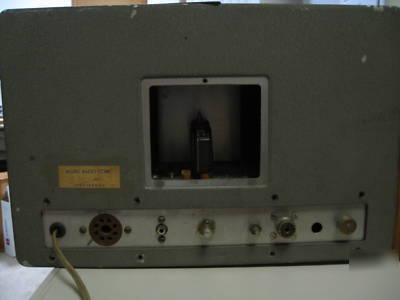

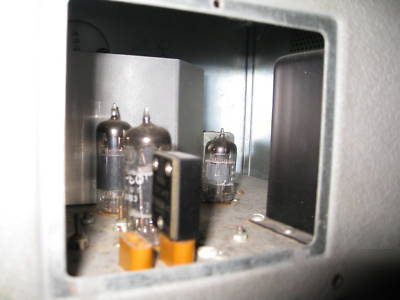

Heathkit DX-35. Crystal-controlled phone & CW transmitter. 6146 final amplifier providing 65 watt plate power input on CW, with controlled-carrier modulation peaks up to 50 watts on phone. Built in modulator and power supplies, covers 80, 40, 20, 15, 11, and 10 meters with a single band-change switch. Pi network output. Tubes: 12BY7 oscillator, 12BY7 buffer and 6146 final. Speech amplifier 12AX7, 12AU7 is used as modulater. Panel control: switch selection of three different crystals (reached through access door at rear). Panel meter indicate final grid current or final plate current.
Please feel free to ask any questions, and let me know of any concerns.
