> 4066 / CD4066BCM/bcmx - lot of 4 pcs

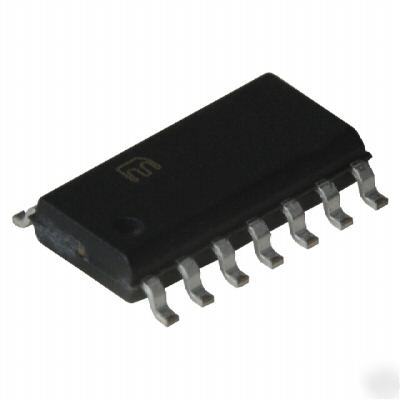

4066 / CD4066BCM/bcmx - lot of 4 pcs
The CD4066BC is a quad bilateral switch intended for the
transmission or multiplexing of analog or digital signals. It is
pin-for-pin compatible with CD4016BC, but has a much
lower ON resistance, and ON resistance is relatively
constant over the input-signal range.
Wide supply voltage range 3V to 15V
High noise immunity 0.45 VDD (typ.)
Wide range of digital and 7.5 VPEAK
ON resistance for 15V operation 80
Matched ON resistance RON = 5 (typ.)
ON resistance flat over peak-to-peak signal range
High degree linearity 0.1% distortion (typ.)
Extremely low OFF 0.1 nA (typ.)
Extremely high control input impedance 1012 (typ.)
Frequency response, switch ON 40 MHz (typ.)
Analog signal switching/multiplexing
Digital signal switching/multiplexing
Analog-to-digital/digital-to-analog conversion
Digital control of frequency, impedance, phase, and
