Omron switching power supply #S82S-0712
Omron Switching Power Supply #S82S-0712

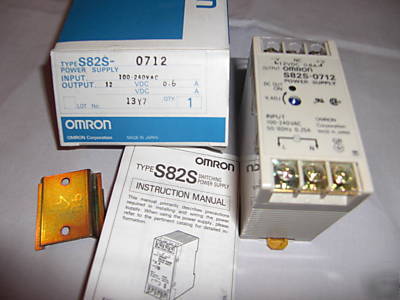

Unused surplus item in original box w/ instruction manual
* Rated input voltage:/current: 100VAC-240VAC, 50/60Hz, 0.25A
* Rated output voltage/current: 12V, 0.6A
* Output voltage variable range: -5% to +5% (With V. ADJ)
* Ripple: 2%[P-P] Max. (Under the rated I/O conditions.)
* Static input variation influence: 0.5% Max. (At 10.2 to 27.6 VDC input, 100% load)
* Static load variation influence: 1.5 % Max.
* Ambient temperature variation influence: 0.05%/ CEL Max.
* Overload protection: Gradual current/voltage drop, automatic reset
* Overvoltage protection: No
* Maintenance forecast monitor output: No
* Total run time monitor output: No
* Undervoltage alarm output: No
* Applicable standard (UL) Standard No.: UL508
* Applicable standard (CSA) Standard No.: CSA C22.2 No.14, E.B.1402C
* Operating: -10 to 60 CEL (Refer to the Derating curve)
Storage: -25 to +65 CEL (with no icing or condensation)
* Operating: 25 to 85 % RH
Storage: 20 to 90 % RH (With no condensation)
* Dielectric strength: 2 kVAC for 1 min (Cut-off current: 10 mA)
* Between all outputs and all inputs/PE terminals: 100 M Ohm Min. (at 500 VDC)
* Vibration resistance: 10 to 55 Hz, 0.375mm single amplitude for 2 h each in X, Y, Z directions
* Shock resistance: 294 m/s2, 3 times each in +- X, +- Y, and +- Z directions
* Output indicator: Yes (color: green)
* Heat radiation: Natural air-cooling
