Z30/20HD genie skyjack scissor man boom lift jlg Z30/20

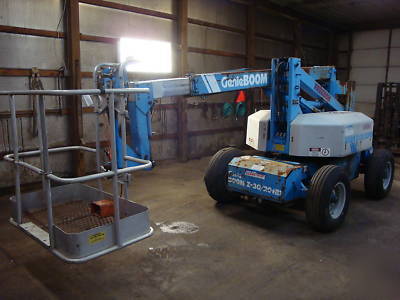

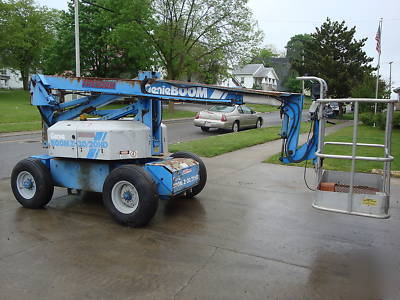

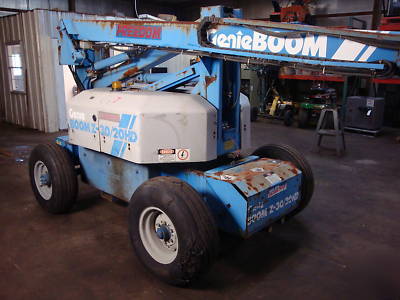

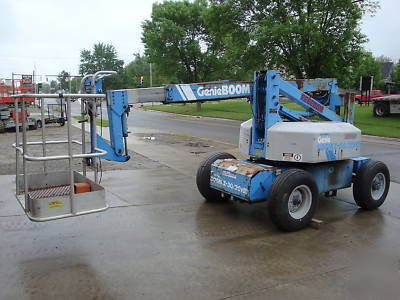

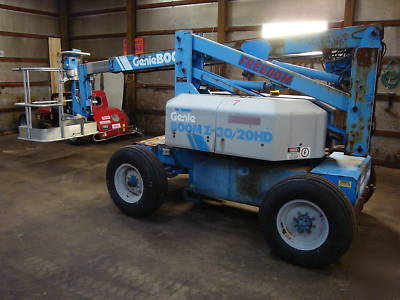

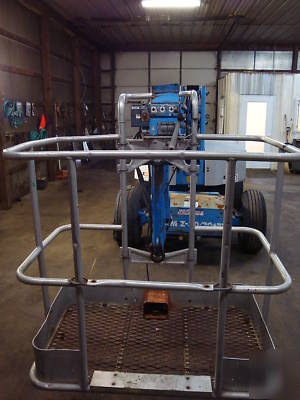

Z30/20HD GENIE BOOM LIFT THAT NEEDS TLC
BATTERY ELECTRIC POWERED 36 VOLT
PLATFORM WILL LIFT 31' HIGH WORKING HEIGHT OF 37'

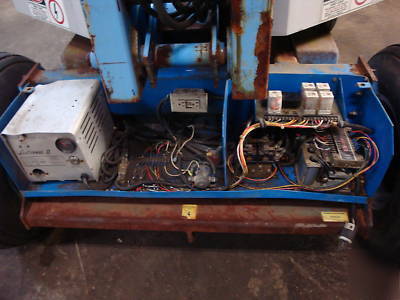

I BOUGHT THIS UNIT OUT OF STORAGE WHERE IT HAD BEEN FOR AROUND 5 YEARS SETTING UNUSED. IT DOES NOT HAVE ANY BATTERIES IN IT AND TAKES SIX 6-VOLT BATTERIES. THE UNIT HAS A DEAD SHORT IN THE WIRING SOMEWHERE AND I DO NOT FEEL LIKE SPENDING THE TIME AND MONEY TO FIX IT SO UNIT IS BEING SOLD AS NEEDING SOME WORK ON WIRING.
EVERYTHING LOOKS TO BE IN PLACE TO MAKE THE UNIT WORK OTHER THAN BATTERIES AND THE DRIVE SHAFT WAS REMOVED SO THE UNIT WOULD FREE ROLL. I HAVE EVERYTHING TO PUT THE DRIVE SHAFT BACK IN THE UNIT.

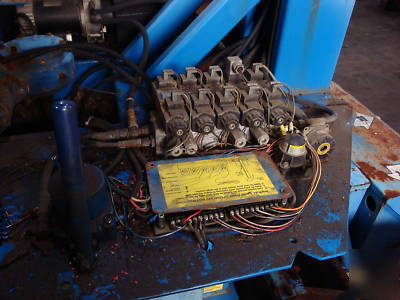

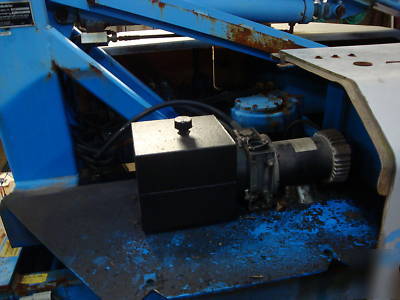

YOU CAN MAKE ALL THE HYDRAULICS WORK BY THE EMERGENCY HAND PUMP AND DID NOT FIND ANY LEAKS WHEN MOVING STUFF TO TEST IT. YOU CAN MAKE IT STEER AND GO UP AND DOWN WITH THE HAND PUMP BUT CAN NOT MAKE IT DRIVE SO UNIT HAS TO BE PUSH OR PULLED AROUND.
ALSO WILL NEED ONE NEW TIRE. IT IS SPLIT OUT BUT STILL ROLLS. TIRES ARE FOAM FILLED.
I HAVE A HUGE FORKLIFT THAT I CAN LOAD THE UNIT ON TO YOUR TRAILER FROM THE SIDE WITH NO PROBLEMS
