Sensors unlimited goodrich camera ingaas SU320M-1.7

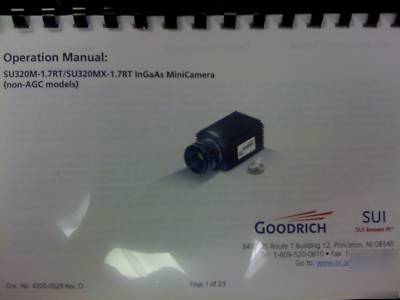

SUI SU320M-1.7RT / SU320MX-1.7RT InGaAs mini camera (non-AGC models)
Sensors Unlimited, Inc. InGaAs cameras act very much like a home video camera, but allow users to "see" objects invisible to the human eye. Short wave applications include covert surveillance with active or passive illumination, missile tracking, hyperspectral imaging, Optical Coherence Tomography, industrial process monitoring, free space telecommunications, and laser beam profiling. Please review the restrictions on our 2 dimensional area cameras.
SU320M-1.7RT InGaAs Near Infrared Minicamera
http:// /downloads/SU320M.pdf
see the pdf of the product selling now.
Assembly & monitoring of optical switches
Inspection of Fiber Optic components
Thermal imaging through glass optics

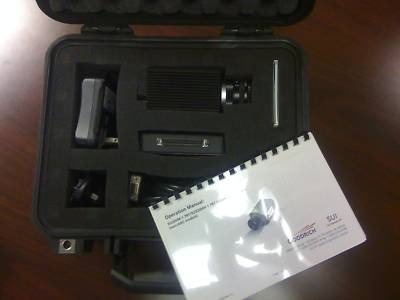

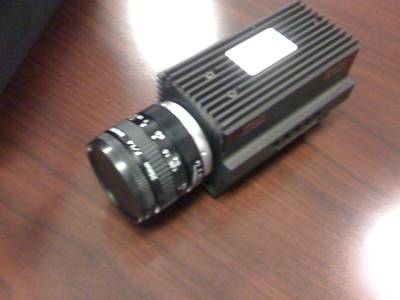

The compact SU320M-1.7RT InGaAs high resolution,
room temperature video camera allows users to
capture images in the near (NIR) and short-wave
(SWIR) infrared wavelength regions with high
(***) 800 1000 1200 1400 1600 1800 2000
The SU320M-1.7RT Indium Gallium Arsenide near infrared camera is a compact and versatile imaging tool. All
SUI cameras operate at room temperature therefore they are equally at home in industrial settings as they are in
the laboratory. Simply power this camera by using 3.6 to 5 VDC or 100 to 240 VAC when used with the AC
adapter. Video images can be seen on any EIA170 or CCIR compatible monitor. The 12-bit digital data is also
available simultaneously in an EIA422 format. The SU320M-1.7RT is compatible with most commercially available
digital frame grabber boards, while it features anti-bloom design, 100% fill factor, and on-board, factory-set nonuniformity
320 x 240 format with 40 m square pixels
High sensitivity in the near infrared spectrum
All solid-state InGaAs imager
Digital & composite video outputs
Accepts standard C-mount lenses
3490 U.S. Route 1 Princeton, New Jersey 08540
Phone: (***) 520-0610 Fax: (***) 520-0638
****@goodrich.com
Focal Plane Array Format 320 x 240 pixels
Operating Temperature 0 C to 40 C
Storage Temperature -10 C to 60 C
3.6-5 V/<0.6 A at 25 C ambient
Spectral Response 0.9 m to 1.7 m
Quantum Efficiency > 65% from 1 m to 1.6 m
Mean Detectivity, D*v1 > 2 x 1012 cm Hz/W
Noise Equivalent Irradiance 1 < 5 x 109 photons/cm2 s
Full Well (Typical) > 2 x 106 electrons
Exposure Times 127 s to 16.27 ms/16.38 ms (EIA170/CCIR) variable in 8 steps
Image Correction 2-point (offset and gain) pixel by pixel user selectable at all 8 integration times
Digital Output Format 12 bit EIA422 format (corrected and uncorrected data is available)
Analog Output Format Interlaced or progressive scan for video monitors
60 Hz (EIA170 progressive scan)
Scan Mode Continuous or triggered
1l =1.55 m, exposure time = 16.3 ms, no lens, corrections off, digital gain 1X
2The fraction of pixels with responsivity deviation within +/-25% from the mean
