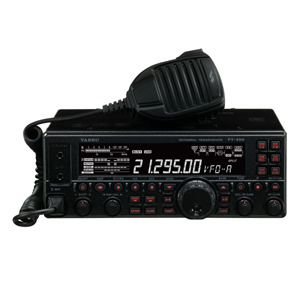

Yaesu ft-450 (FT450, ft 450) all mode transceiver
Digital Noise Reduction (DNR)
Digital Microphone Equalizer
Two Voice Memories (SSB/AM/FM)
Digital Voice Announcement function
- Speed adjustable between 4 WPM and 60 WPM
- Weight (Dot:Dash Ratio) adjustable
- CW T/R Recovery Delay programmable from 30 ms to 3000 ms
- CW Beacon - Up to 118 characters using CW message keyer s 3 memory banks
- CW Pitch Adjustment (between 400 to 800 Hz, in 100 Hz steps)
- CW Spotting (Zero-Beating) function
- CW Reverse - provides BFO injection from LSB-side instead of default USB-side
- CW Keying using Up/Down keys on the optional microphones (MH-31A8J or MH-36E8J)
- CW Training feature sends random Morse Code via the built-in sidetone generator.
Rx Frequency Range: 30 kHz - 56 MHz (operating)
60 - 6 m (specified performance, Amateur bands only)
Tx Frequency Ranges: 160 - 6 m (Amateur bands only)
Frequency Stability: 1 ppm/hour (@77 F /+25 C, after warmup)
Operating Temperature Range: 14 F ~ 122 F ( 10 C ~ +50 C)
Emission Modes: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM)
Frequency Steps: 10 Hz (SSB & CW), 100 Hz (AM & FM)
Antenna Impedance: 50 Ohms, unbalanced
Power Consumption: 100 watts (25 watts AM carrier)
Modulation Types: J3E (SSB): Balanced,
A3E (AM): Low-Level (Early Stage),
Maximum FM Deviation: 5.0 kHz / 2.5 kHz
Harmonic Radiation: Better than 60 dB (160 - 10m Amateur bands)
Better than 70 dB (6m Amateur band)
SSB Carrier Suppression: At least 60 dB below peak output
Undesired Sideband Suppression: At least 60 dB below peak output
Audio Response (SSB): Not more than 6 dB from 400 to 2600 Hz
Circuit Type: Double-conversion superheterodyne
Intermediate Frequencies: 1st IF 67.899 MHz / 2nd IF 24 kHz
Sensitivity (IPO "OFF", ATT: OFF): SSB (2.4 kHz, 10 dB S+N/N)
There is no specification in frequency ranges not listed.
Squelch Sensitivity (IPO "OFF", ATT: OFF): SSB/CW/AM
Image Rejection: 80 dB or better (160 - 10m Amateur bands)
65 dB or better (6m Amateur band)
Maximum Audio Output: 2.2 W into 4 Ohms with 10% THD
Audio Output Impedance: 4 to 16 Ohms (8 Ohms: nominal)
Conducted Radiation: Less than 4000 W
ATAS- 25 Portable manually tuned antenna. 7/14/21/28/50/144/430 MHz. 206.26 EUR / 177.69 GBP
ATAS-120 Active tuning motorized mobile antenna 278.97 EUR / 240.34 GBP
FC-30 Automatic antenna tuner 193.75 EUR / 166.92 GBP
FC-40 External automatic antenna tuner 250.23 EUR / 215.57 GBP
MD-100A8X Desktop microphone 96.18 EUR / 82.86 GBP
MD-200A8X Ultra fidelity desktop dynamic microphone 210.25 EUR / 181.13 GBP
MH-36E8J DTMF Hand mic 48.55 EUR / 41.82 GBP
MH-67A8J MH-67A8J Hand microphone 25.92 EUR / 22.34 GBP
MMB-90 MMB-90 Mobile mounting bracket 15.6 EUR / 13.44 GBP
ATU-450 Yaesu ATU-450 antenna 114.86 EUR / 98.95 GBP
YH-77STA Yaesu YH-77STA Lightweight Stereo Headphones 45.4 EUR / 39.11 GBP
Slovakia, Romania, Austria: 12 EUR or 11 GBP
