Ic's,jrc,8-pin dip dual op-amp bipolar,p/n NJM5532DD

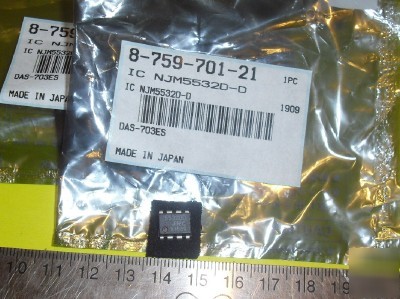

IC's,JRC,8-PIN DIP DUAL OP-AMP BIPOLAR,P/N NJM5532DD
JRC IC 8-PIN DIP DUAL OP-AMP BIPOLAR
Gain Bandwidth Product: 10 MHz
Input Offset Voltage: 4 mV @ 15 V
Input Bias Current (Max): 0.8 uA @ 15 V
Maximum Power Dissipation: 500 mW
Maximum Operating Temperature: + 75 C
Dual Supply Voltage: +/- 5 V or 9 V or 12 V or 15 V or 18 V
Maximum Dual Supply Voltage: +/- 20 V
Minimum Dual Supply Voltage: +/- 3 V
