Electronics package (only) for flir thermal camera nice

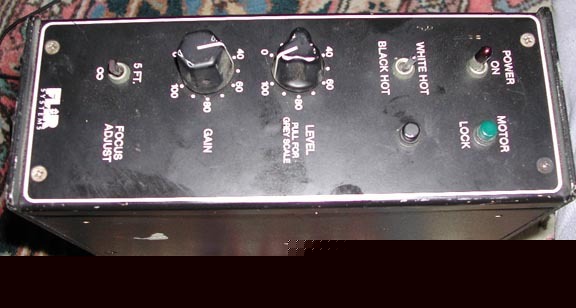

Flir Systems, Inc. Model # 1000A Part Number # 90001600, S/N# 349 Electronics Package that we believe came from a Gimbal Mounted Thermal Imaging system possibly similar to an Agema Thermovision 1000 Airborne Surveillance Camera system. All we have is the electronics package. On the back panel it has 5 mil-spec connectors labeled: P1 Camera, P2 Power Out, P4 Power in, P5 Gimbal, and P6 Control. Also there is one BNC Female connector labeled P3 Video. This is also a fuse holder for a 7.5A fuse. On the front panel there are 3 toggle switches, 2 pilot lamps, and 2 knobs. The switches are for power, white / black hot select, and focus 5ft / infinity. The knobs are for adjusting level from 0 100 and gain from 0 100. One of the lamps indicates motor lock I don t know what the other lamp is for.
