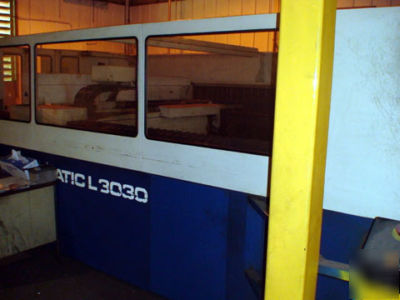

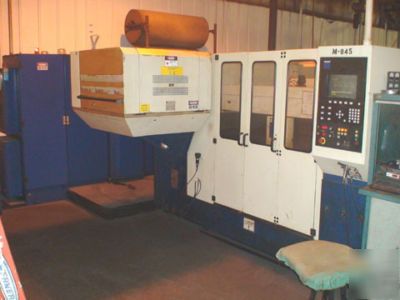

Trumpf model L3030 dual pallet laser cutting system


Liberty Machinery Company-You are looking at (1) USED - TRUMPF MODEL L3030 DUAL PALLET LASER CUTTING SYSTEM WITH TLF3000T TURBO RESONATOR*
Serial No. Serial No. 920019 Condition - UsedNew - 1998
Workpiece Weight - Maximum 1,562 Lbs.
Speed X-Axis - Maximum 60 m/Min
Simultaneous X-Y-Axis Positioning Speed- Maximum 3300 IPM
Cutting Speed - Maximum 2362 IPM
Cutting Capacity .40" Mild - Steel
Laser Capacity - Maximum 3000 Watt
Approximate Dimensions 386" L x 181" W x 79" H
Approximate Weight 25,300 Lbs.

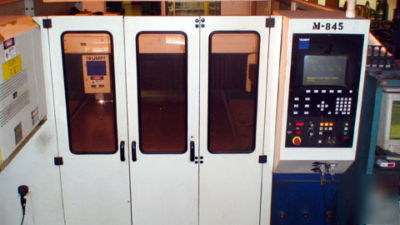

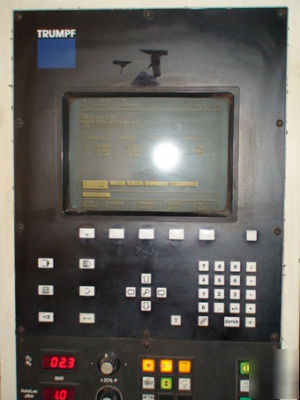

Siemens Trumagraph CC220S CNC Control with Graphics and Simulation mode
Trumpf Model TLF3000T Turbo Resonator (Hours 41,674)

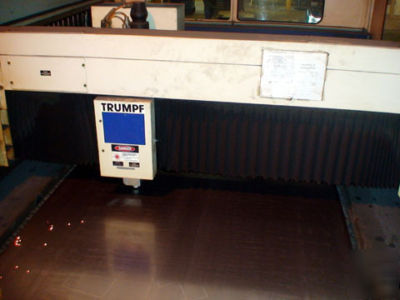

Flying Optic Machine Positioning Design

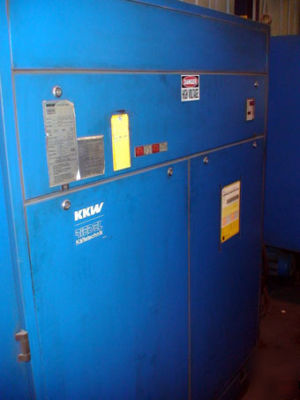

KKW Riedel Refrigeration System, R22, 33Lbs.,26 Bar
Luft Technik Dust Collection System/Air Filtration System
Pallet Shuttle/ Load Unload Table

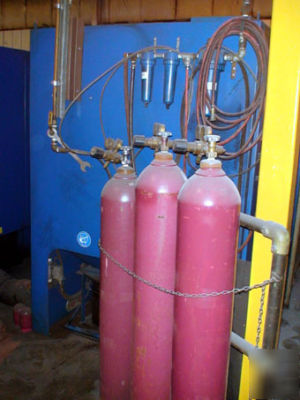

Hi-Pressure Gas Assist (tanks not included)
Bottom Running Metal Slag Conveyor
*Preliminary Specification Subject to Verification.
