Programming rib cable motorola spectra low power

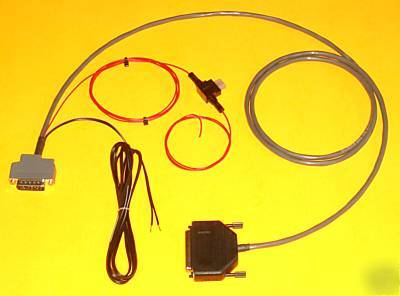

RIB-to-Radio programming cable assembly for low and medium power Spectras and Astro Spectras.
This cable includes SPEAKER LEADS, for users desiring to monitor receive audio during programming & tuning; or for use with dash-mount radios installed in consoles or other hard to reach locations, to allow convenient re-programming at any time without dismantling the console.
Note: This cable requires a Radio Interface Box (RIB) - (Motorola RLN4008 or equivalent), and the appropriate Radio Service Software (not available from MRE1032). This cable is not for direct connection between a computer and radio. This cable has a DB25F connector at one end (for connection to the RIB) and low profile 15-position male at other end (for connection to the radio accessory connector). The fused red lead is for connection to +12V while programming the radio (ignition sense). This cable is compatible with any dash mount or remote mount low-power or mid-power Spectra or Astro Spectra (all units other than 100 and 110-watt trunk mounted models). If you need a cable for a high power trunk mount unit, please see my other listings.
