Model 275 flexible gravity conveyor nestaflex steel
MODEL 275 FLEXIBLE GRAVITY CONVEYOR NESTAFLEX STEEL

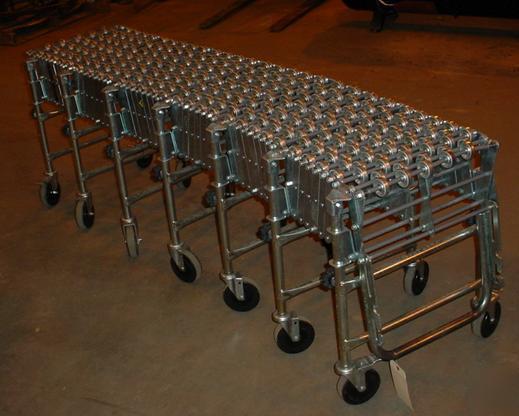

NESTAFLEX MODEL 275 GRAVITY CONVEYOR
The durable Nestaflex Model 275 conveyor is a heavy-duty option for easily moving and transporting materials, boxes, packages and more. It has double cross-braces and reinforced legs for additional support. The heavy-duty frame of the Model 275 conveyor allows it to easily handle heavy packages and cartons. It features casters, making the Model 275 gravity conveyor completely mobile. Use this conveyor in a warehouse or for manufacturing needs.
Permanent Quick Connect (patented):
No-hassle conveyor connector. Connecting brackets made from 11-gauge steel. Handknob sets and lock washers provide no-tool connection assembly.
Capacity with 5-1/4" Axle Centers:
Fully extended - 275 lbs per linear foot.
S - Steel skate with steel ball bearings.
Standard 5-1/4" axle centers. 3 and 4-inch centers available.
Leg Sets and 4-Point Connection:
1-1/8" OD, 12-gauge steel tubing. Reinforced inner leg and double cross-braces. Four-point connection to skate wheel axles.
7-gauge, zinc-plated steel. Top connections: 5/16" steel axles with lock nuts. Cross-point connections: steel pivot pins with spring-loaded retainers. Bottom Connections: combination of pivot pins and 5/16" steel tie rods.
Heavy-duty 1-1/8" OD, 12-gauge steel tubing. Folds down when not in use.
7-gauge steel couplers to link conveyors together.
Standard: 5" x 1-1/2" swivel caster with heavy-duty stem. Swivel/wheel lock pedal brakes provided on first and last leg sets.
