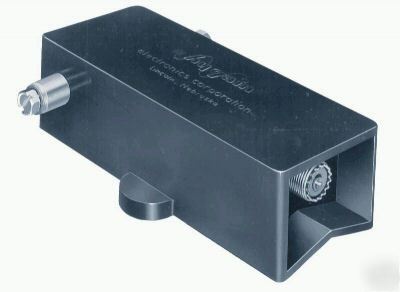

Hy-gain bn-86 3-30 mhz 1500W 50-ohm best balun ever
This balun is a ferrite, balanced to unbalanced, antenna matching device. With a transformation ratio of 1:1, the balun will couple into any 50 ohm balanced system such as dipoles, multiband doublets and beam antennas
This balun is supplied with stainless steel hardware except for eyebolts
For higher power and higher VSWR, use the Hy-Gain BN-4000 current-type balun rated at 2000 watts ave., 4000 watts PEP
DO NOT use this balun with any type of antenna tuner or match box when the VSWR
(before matching) is greater than 3:1. If the VSWR is below 3:1, a match box can be used
as long as the power levels are kept below the limits shown in the Specifications. When
these power and VSWR limits are exceeded, the extremely high standing wave voltage
present at the feedpoint causes the breakdown voltage of the balun to be exceeded
The coaxial connection may be weatherproofed with hand-moldable plastic Coax-Seal . This substance should be applied liberally to the connection and pushed into tight areas for complete sealing.
873424 Balun Assembly .................................................................................................1
872079 Parts Pack, 242S ...............................................................................................1
540087 U-bolt, #10-24 x 2 1/2" x 2 3/4" stainless steel ...................................................1
540066 Eyebolt, 1/4" x 1 1/2" .........................................................................................2
554099 Nut, hex, 1/4"-20 ...............................................................................................4
554071 Nut, hex, #10-24 ...............................................................................................2
562961 Lockwasher, internal, 1/4" ..................................................................................5
500156 Bolt, hex head, 1/4"-20 x 3/8" ............................................................................2
850050 Coax-Seal ......................................................................................................1
Hy-Gain Warrants to the original owner of this product, if manufactured by Hy-Gain
and purchased from an authorized dealer or directly from Hy-Gain to be free from
1. The purchaser must retain the dated proof-of-purchase (bill of sale, canceled check,
validity of the warranty claim and submit the original or machine reproduction of
such proof of-purchase to Hy-Gain at the time of warranty service. Hy-Gain shall
have the discretion to deny warranty without dated proof-of-purchase. Any evidence
2. Hy-Gain agrees to repair or replace at Hy-Gain s option without charge to the
original owner any defective product under warranty, provided the product is
3. Under no circumstances is Hy-Gain liable for consequential damages to
person or property by the use of any Hy-Gain products.
4. Out-of-warranty Service: Hy-Gain will repair any out-of-warranty product
the owner. Repair charges will be added to the COD fee unless other
5. This warranty is given in lieu of any other warranty expressed or implied.
6. Hy-Gain reserves the right to make changes or improvements in design or
manufacture without incurring any obligation to install such changes upon any of
the products previously manufactured.
7. All Hy-Gain products to be serviced in-warranty or out-of-warranty should be
addressed to hy-gain, 308 Industrial Park Road,
and must be accompanied by a letter describing
the problem in detail along with a copy of your dated proof-of-purchase.
8. This warranty gives you specific rights, and you may also have other rights which
