Trane steam / hot water unit heater great for shop deck

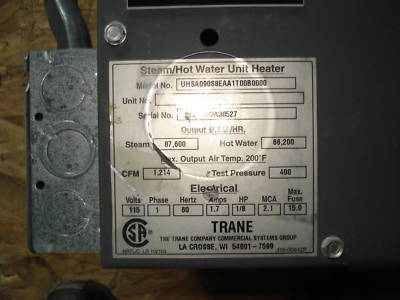

General BTU's 85,600 for steam
NRTLC/C indicator adjacent to the CSA mark signifies that the product has been evaluated to the applicable ANSI/ UL and CSA Standards, for use in the
NRTL, i.e. Nationally Recognized Testing Laboratory, is a designation granted by the U.S. Occupational Safety and Health Administration to labortories which have
been recognized to perform certification to U.S. Standards.

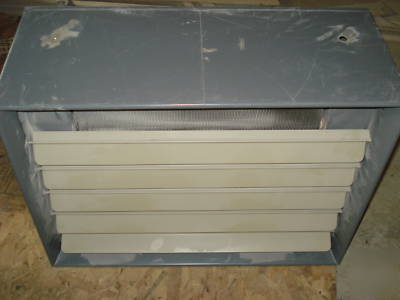

picture frame front formed into wraparound sides, top and bottom. Adjustable horizontal louvers are standard. 18 gauge back panel with deep-draw fan orifice for extreme rigidity. Steel supply and return pipe tap connectors bolted to back. Casings phosphatized to prevent corrosion and painted with blue gray baked enamel.

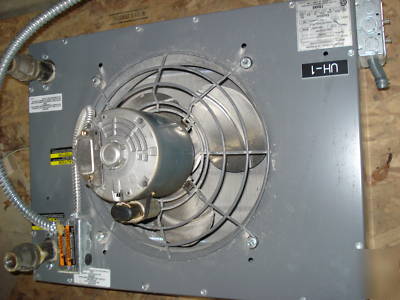

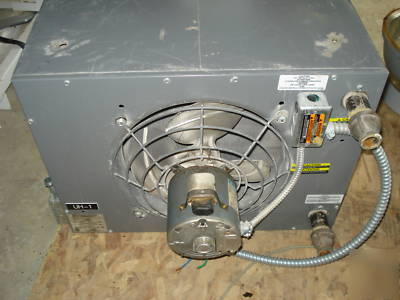

Trane designed and built high efficiency Model A fan with aluminum blades is quiet, factory balanced and sturdy for standard or sparkproof applications.
Hot water-steam headerless coils are single tube, single serpentine on all sizes except 230 thru 354 which have two circuits. Fins are aluminum Sigma-Flo, mechanically bonded to seamless copper tubing. All coils one-row deep in air flow direction.
Coils tested at 400 psi air under water. Standard coils have .031 copper tubing suitable for use on steam pressures to 75 psi or hot water up to 200 psi or 325 F. (When Specified) Heavy .049 red brass tubing suitable for 75 psi steam or 390 deg. F water at 260 psi
.031 cupronickel tubing suitable for 450 deg. F water at 400 psi .049 steel tubing suitable for 450 deg. F water at 400 psi. (When Specified) Coils with turbulators (Suffix W) available for high performance on hot water.(When Specified) Coils with fin series 132 (Suffix 2) for high performance on hot water or steam. (When Specified) Bypass Model S units with modified coils for air bypass. Unit sizes have odd numbers (19, 77, 243, etc.).
Totally enclosed, 115/60/1 Class
B insulated shaded pole and PSC motors are STD. 1/50 through 1/8 hp are sleeve bearing, 1/6 through 3/4 hp are ball bearing. All single phase motors have built in overload protection. Sleeve bearing motors can be oiled. Ball bearing motors are permanently lubricated.
The 115/60/1 motors used as standard on unit sizes 18S through 100S can be operated at multiple speeds with the addition of a solid- state control.All units available with explosion-proof motors. Only sizes 18S, 42S, 90S and 126S are available from stock with 115/60/1 explosion-proof motors.
