#9971 - cincinnati monoset tool and cutter grinder

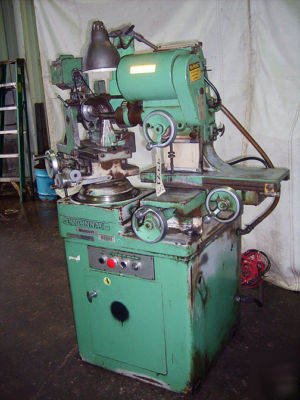

CINCINNATI MONOSET TOOL AND CUTTER GRINDER
Distance, spindle and tail center 6"
Logitudinal movement main slide 5-3/4"
Offset slide movement main slide 2-1/4"
Vertical slide travel, wheelhead above center 4-1/4"
Vertical slide travel, wheelhead below center 4-1/2"
Transverse slide travel, wheelhead 7-1/2"
Longitudinal slide travel, wheelhead 6"
Overall dimensions (est.) 4' x 4' x 5' H
1/3 HP 3/60, AC Wheelhead spindle drive motor
