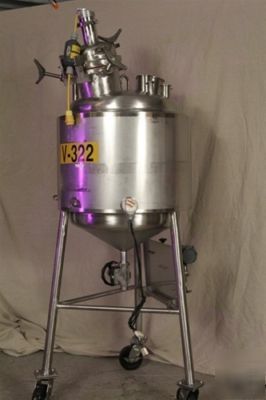

50 gallon jacketed sanitary 316L stainless reactor tank
1993 Apache 50 Gallon Pressurized & Jacketed
Sanitary Stainless Steel Coned Bottom Reactor Tank
http:// /watch?v=YnmDKsmGw8E
http:// /ProductDetails.asp?ProductCode=TL-V322
20" Straight side height of tank.
28" diameter not including ports for jackets.
Side ports sticks out 5" inches.
Has a domed top and conical bottom.
(2) 1.5" ports with 1.5" tri-clamp fittings.
(2) 1" ports with 1.5" tri-clamp fittings.
NOTE: One of the 1" ports is bent and the tri-clamp ferrule is bent as well.
The bent ferrule will not be able to provide a tight seal so the tank won't hold pressure unless this is fixed and it can be easily fixed.
(1) 2" port with 2" tri-clamp fittings.
(1) 3" port with 3" tri-clamp fitting.
(1) 3/4" port with 3/4" tri-clamp fitting.
(1) 6" port with 6" tri-clamp fitting.
(1) 10" Hatch door opening up top includes a sight glass and a 110v push button light to shine down and illuminate inside the tank.
There is a removable 1.5" TC stainless steel blow off tube/vent (see photo).
On the top, there is a picking loop in case the unit needs to be lifted with a crane.
(1) 1/2" port with 3/4" TC fitting.
(1) temperature gauge port. There is a temperature probe attached with custom plugs.
(1) 1.5" male thread port on side with plug.
Jacket MAX. Allowable Working Pressure
Jacket MIN. Design Metal Temperature
(1) 1.5" Tri-clamp gate valve attached to 1.5" drain port with 1.5" tri-clamp fitting at the bottom of the cone.
Stainless legs with 3 Caster wheels with brakes.
Manufacturered by Apache Stainless Equip. Corp. (Wisconsin, USA)
