> Tip 30 to-220 xistor (10 pcs)

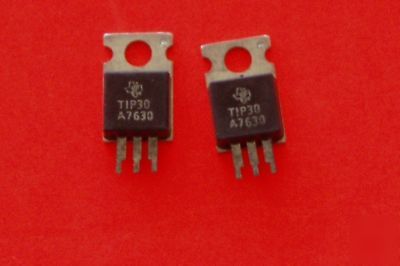

Tip 30 to-220 xistor (10 pcs)
PNP Epit axial Silicon Transistor
Absolute Maximum Ratings TC=25 C unless otherwise noted
Electrical Characteristics TC=25 C unless otherwise noted
* Pulse Test: PW 300 s, Duty Cycle 2%
Collector-Base Voltage : - 40 V
VCEO Collector-Emitter Voltage : - 40 V
VEBO Emitter-Base Voltage - 5 V
IC Collector Current (DC) - 1 A
ICP Collector Current (Pulse) - 3 A
PC Collector Dissipation (TC=25 C) 30 W
PC Collector Dissipation (Ta=25 C) 2 W
TJ Junction Temperature 150 C
TSTG Storage Temperature - 65 ~ 150 C
