Systron donner 1702 signal generator 1702-07 option 7
Systron Donner 1702 Signal Generator 1702-07 OPTION 7

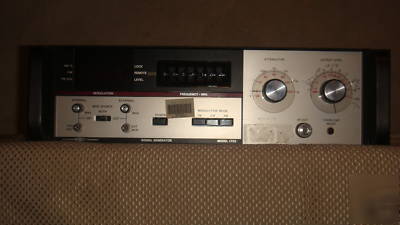

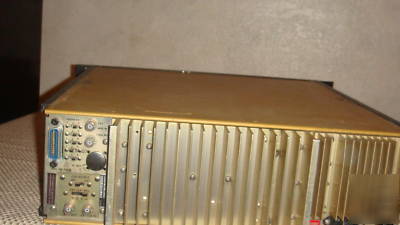

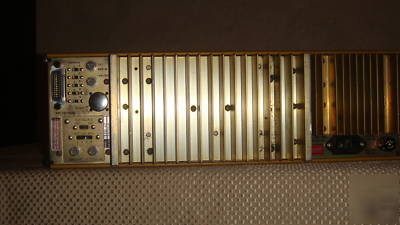

For sale is a Systron Donner 1702 Signal Generator with OPTION 7. This unit was pulled from a working environment.
The 1702 Synthesized Signal Generator provides a stable broad band frequency range of 100Hz to 999.9999MHz in a single range with 100Hz resolution. Frequency accuracy of 7 parts in 10E-09 per day. Output modes of AM, FM, and CW are continuously variable from 0.1 V to 1 Vrms (-127 dBm to +13 dBm) by a front panel 20 dB vernier control and a 20 dB six step attenuator. Output impedance is 50-ohms.
?Option 07 = IEEE-488 Interface (Frequency, level and mode) included option 06
The item is in good cosmetic condition and has no visible signs of damage that would cause any functionality issues.

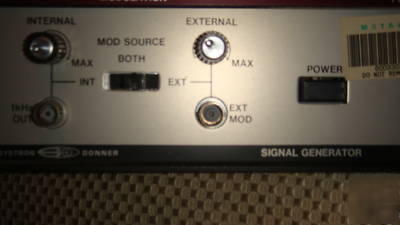

The unit powers up with no problems. The reading on the display panel changes accordingly when the control knobs are turned. No further testing was done due to lack of equipment.
This item is guaranteed to be in the condition as described above and displayed in the pictures. No further guarantee is given.
