T870A bga irda welder infrared heating rework station m

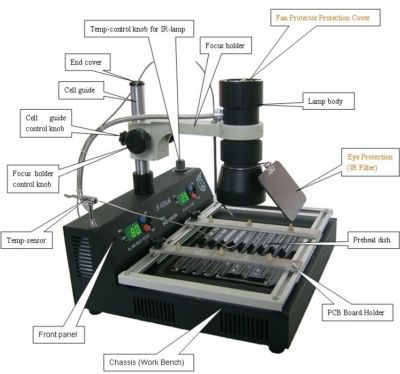

Brand New Updated T870A BGA IRDA Welder Infrared Heating Rework Station
Unlike Air Re-Work systems, The T-870A uses an Infrared source and optics to target heat to individual components without dislodging other SMT parts by way of eddies air currents.
Infrared soldering technology with independent exploration capabilities via focus lenses which is included in the package.
Technician focused infrared heat is easy to target most component removal/replacement and re-work.
The Workstation has a 180X240mm a 800W controlled Pre-heating System.
Infrared heat source bulbs are long-lived, in-expensive and easily replaced.
Processor controlled set-point regulated temperatures with thermocouple feed-back.
Integrated and adjustable Infrared (IR) eye protection.
Can suitable for the entire component, especially Micro BGA component.
Extra soldering tools are not necessary. It can solder/unsolder and re-work Surface MountTechnology (SMT) components 35-50cm in size
Training is illustrated in factory provided video.
It can satisfy the maintain of computer, the notebook, the electricity swims and so on. Especially to the request of BGA sealing off/repairs, and computer north/south bridge
Manufacturer Suggested Retail Price:3899USD
Working Voltage: AC220V/50Hz and AC110V/60Hz (we stock the item specail for the country all over the world)
Infra-red lamp body temperature adjustable: 200 -350
Preheating dish temperature adjustable: 60 -200
Please see the following video show you how to use
Power Cable (110VAC or 200VAC)
