Motor speed controller (dc)- 9 - 28VDC 10 amp

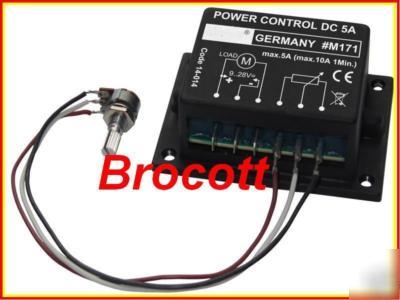

9 To 28 VDC, 10 Amp Voltage Controller Module
10A / 9 - 28Vdc DC Power Controller
The module is used for controlling the speed of a DC electric motor, DC lighting, heating elements etc. The module may heat up depending on the load. Therefore, it has to be mounted in a dry and well ventilated place. In case of loads of more than 5 A (up to max. 10 A) the module should be mounted on a metallic heat sink plate to accomodate cooling. This is done by attaching the module to a heat sink or bigger metallic plate (e.g. angle section, metallic plate) in such a manner that the metallic base plate of the module will not heat to more than +70 C under highest load (the connected load runs at max. power). The supply voltage to the module must be between 9...28 V.
Example: When operating a 12Vdc motor the operating voltage must be 12Vdc.
Max. Load: 5 A or (10 A if the module is screwed on a cooling plate)
Control range: Approx. < 5 % to > 95 %
Control mode: PWM with a frequency between 10...20 kHz
Potentiometer: 4,7 K lin (Included)
Dimensions: Approx. 86 x 60 x 33 mm
Permissible loads: Direct current motors, incandescent lamps, heatings, LEDs.
