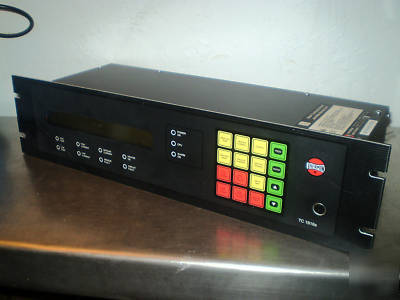

Thermon TC1818A heat tracing control & monitoring unit
THERMON HEAT TRACING CONTROL AND MONITORING UNIT
120VAC, .33A, ALARM RELAY: 120 OR 240, 1A
CONTROL CIRCUIT RATING: 5 Vdc, 0.17mA(I/O-RS-485, RTD I/P)
RACK MOUNTABLE (FITS STANDARD 19" RACK)
The TC 1818a is a microprocessor-based temperature control and monitoring module
developed specifically for heat tracing. The multi-circuit module can provide heat
tracing control, digital information display and alarms for high temperature, low
temperature, high current, low current, high ground leakage current, circuit fault, and
damaged temperature sensor for up to eighteen heat tracing circuits.
The TC 1818a module operates independently and can also be connected to a data
highway for remote systems communication functions through a personal computer or
a distributed control system (DCS).
FOR MORE INFO: www.thermon.org/catalog/us_pdf_files/PN80505.pdf
