Marconi instruments 6960B rf power meter w/ opt 001

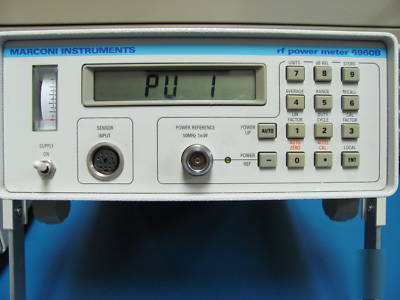

Marconi Instruments 6960B RF Power Meter with Option 001
The 6960 is a microprocessor controlled RF power meter combines high accuracy with fast, easy, flexible operation and simple calibration and maintenance.It has a

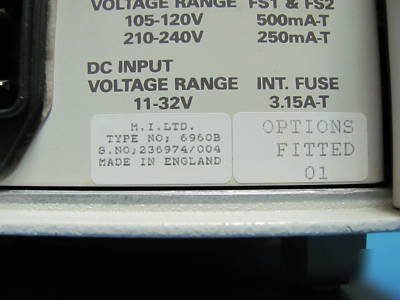

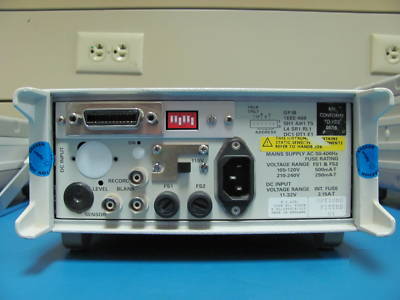

Proven high reliability. This unit is equipped with Option 001: GPIB INTERFACE, it is built into the instrument when option 001 is ordered.
This Marconi Instruments 6960B RF Power Meter with option001 is guaranteed to work according to specifications.
*Add 9.1% Sales Tax for Arizona Residents
Here is a link to a pdf user manual available online:
http:// /vt/assets/pdfs/IFR_6960B.PDF
http:// /ats/products/prodfiles/datasheets/231/6960b.pdf
* 30 kHz to 46 GHz depending on sensor used.
* 70 dBm (100 pW) to +44 dBm (25 W) depending on sensor used.
* 0 dBm (1 mW), 50 MHz, Type N female precision connector, 50 .
Adapters are supplied for other connectors with the power sensor.
* 0.7% traceable to National Standards.
* 1.2% worst case for one year.
* Over-range, Remote, Peak, Under-range, dB, dBm, dB REL, nW to kW,Zero.
* Watts mode dBm mode dB REL mode
* 0.5%. 0.02 dB. 0.02 dB.
* Set 1% of FSD on most sensitive range.
