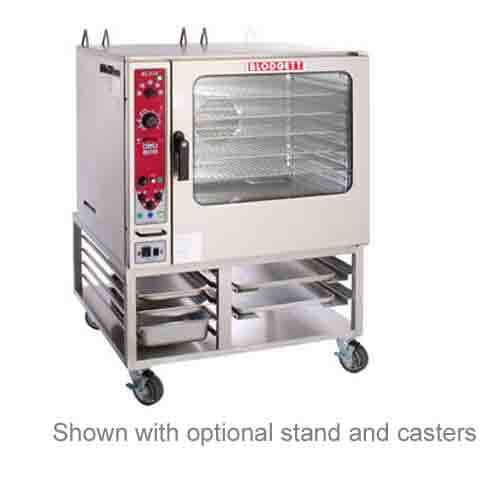

Blodgett bcx-14GSINGL combi oven steamer, full size, si
Combi Oven Steamer, Full Size, Single Deck, 115,000 BTU, Gas
One-year parts and labor warranty -view pdf
Combi Oven Steamer, Gas, counter/stand, capacity (14) 12"x20"x2.5" pans or (7) 18"x26" pans, glass door, 4 spd fan, Steam-on-Demand, Time to Delime indicator & Vario Steam , dual stage door latch, 13-position rack glides, 5 wire shelves, retractable hose reel, 115,000 BTU
* Blodgett Combi model BCX-14G single, gas combination-oven/steamer.
* Ability to cook with pressureless steam (212F), hot air, or combination of steam and hot air (with an operating range 140F to 500F), vario-steaming (operating range 140F to 212F), low temperature cooking and holding, rethermalizing, cool down mode and our Exclusive Steam on Demand steam injection system.
* Oven capacity to accept 7ea 18x26 bake pans or 14ea 12x20x2.5" full size steam table pans with 3-1/4" spacing.
* Front access service user interface control panel and service diagnosis system.
* Constructed with a fully welded stainless steel frame. Cooking chamber constructed with 304 series with bright-annealed stainless steel finish and coved corners.
* Integrated retractable wash down hose to include front water shut off valve.
* Oven cavity open to the atmosphere with a thermostatically controlled quench box with a flow rate of less than 8 gallons per hour (total water consumption not to exceed 15 gallons per hour).
* Includes a four speed, bi-directional fan with vent switch to control humidity in the cooking chamber.
* Dual pane thermal glass window with 180 degree door swing, two-step safety
* door-latch with adjustable door hinges, door mounted drip pan.
* Includes a detachable 6-1/2" core temperature probe and four halogen lights
* Standard control with function selection for steam, combi, hot air and cool
* Thermostat control to 500F
* Multiple speed reversing fan for even bake
* Dual stage door latch to vent steam before fully opening door
* Cavity vent control provides ability to release steam at the turn of a switch
* Electronic spark ignition
* Open vented system. Condenses steam and drains away by-products of the
* cooking process, eliminates flavor transfer
* Self contained, self-flushing steam generator separate from cooking compartment for instant steam recovery when switching modes
* Control promps user to delime when steam generator requires deliming
* Five (5) stainless steel wire shelves per section (capacity for 7)
* Hinged pressure panel for cleanability
* Four halogen lights for superior cavity illumination
* Retractable hose reel hidden behind door, no extraneous hoses
* Stacking kit and casters for double stack ovens
* Deliming bottle and pump assembly
* Pressure spray bottle for oven cleaning
* 6-1/2" core temperature probe
* Start-up inspection service by factory authorized service agent
* Manufacturer: Blodgett Combi
