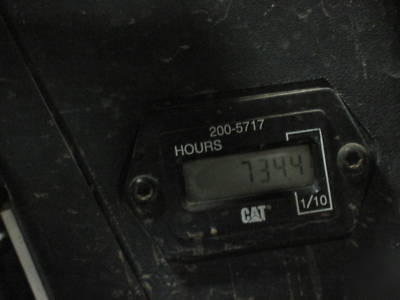

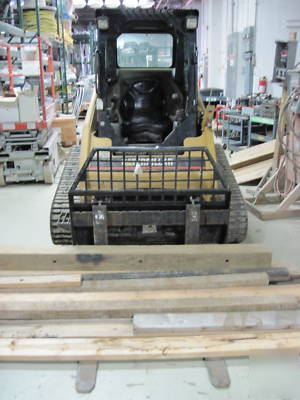

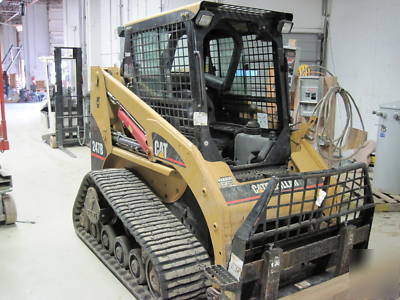

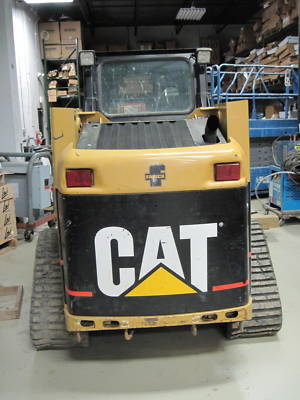

> 04 cat caterpillar skid steer 247B ****** low 735 hours
04 cat caterpillar skid steer 247B ****** low 735 hours
WE ALSO HAVE OTHER ATTACHMENTS FOR SALE THAT ARE NOT INCLUDED IN THIS LISTING: Trencher, Auger & Hammer
247B and 257B Multi Terrain Loader Brief Specifications
Rated operating capacity at 35 percent tipping load Rated operating capacity at 50 percent tipping load
1,367 lb (620 kg)1,950 lb (885 kg)
1,615 lb (732 kg)2,3100 lb (1047 kg)
B-Series improvements for all models
The B-Series machines employ the proven anti-stall system and pilot hydraulic joystick controls that make Caterpillar Multi Terrain Loaders easy to operate. B-Series improvements include a deluxe joystick design that incorporates positive-action buttons to control work tool hydraulic or electrical functions. An ergonomically designed arm bar is rounded and sculpted to provide superior operator comfort, and the redesigned gauge panels are easy to read. The B-Series cab offers a new door option with 25 percent more glass that improves sight lines to the working area. The new door also incorporates a new loader lock out function that prevents loader arm movement when he door is open. A standard convex rearview mirror gives the operator a wider view behind the machine, and the lights are now adjustable 10-degrees up and down as well as side-to-side.
The improved B-Series hydraulic system design reduces the number of potential leak points and improves reliability and cleanliness. A 5-micron spin-on filter keeps hydraulic oil clean, and a high-efficiency hydraulic oil cooler allows the machines to work smoothly in high ambient temperatures.The Caterpillar 247B and 257B Multi Terrain Loaders are compact, rubber-tracked machines designed for exceptional versatility, flotation, traction, stability and ride quality. The Multi Terrain Loaders combine the proven technology of the Cat Skid Steer Loaders and a suspended track undercarriage. The suspended undercarriage transfers machine weight to the ground through 24 wheeled contact points bearing against 59 inches (1499 mm) of track on ground for very low ground pressure. The undercarriage remains unchanged in the B-Series.
The 247B is the smallest of the Multi Terrain Loaders with an operating capacity of 1,950 pounds (885 kg), when defined as 50 percent of tipping load. The 257B operating capacity is 2,310 pounds (1047 kg) at 50 percent tipping load. Both loaders now use the responsive Cat 3024C T engine, which complies with U.S. EPA Tier 2 emissions regulations. Net power is 57 horsepower (42 kW) in each machine.
Both B-Series models have greater hydraulic system performance than the models they replace. Standard flow is 15.6 gpm (60 L/min) and maximum pressure is 3,355 psi (23 000 kPa). The high flow option available on the 257B boosts flow to 26 gpm (100 L/min) and hydraulic horsepower increases 40 percent for highly productive operation of hydraulically powered work tools.
