New square d 200 amp molded case thermal mag breaker

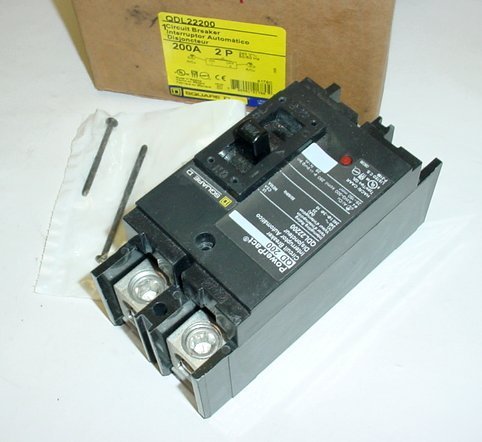

NEW SQUARE D 200 AMP MOLDED CASE THERMAL MAG BREAKER
Square D SQD QDL22200 Specifications:
MOLDED CASE, THERMAL MAGNETIC; Q FRAME; 240 VAC AT 50/60 HZ (UL/CSA/NOM), 240/415 VAC AT 50/60 HZ (IEC); 200 AMPERE AT 40 DEG C; 2 POLE; INTERRUPTING RATING 25 KILOAMPERE AT 240 VAC (UL/CSA/NOM), 10 KILOAMPERE AT 240/415 VAC (IEC); TERMINAL LINE LUG, LOAD LUG; SIZE 3 INCH W X 3.93 INCH D X 6.47 INCH H; APPROVAL UL, CSA, CE; QD MODEL; APPLICABLE STANDARD FEDERAL SPECIFICATION W-C-375B/GEN
