Exfo axs-110-12CD -23B sm/ mm otdr

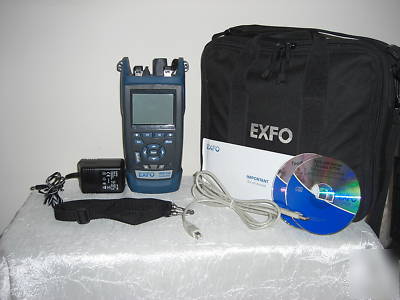

Excellent condition, was in use less then 2 years.
AXS-110 All-Fiber OTDR Combining singlemode and multimode capabilities for enterprise, campus and access networks, this model offers the 850, 1300, 1310 and 1550 nm wavelengths, with respective dynamic ranges of 24, 25, 32 and 30 dB.
* FasTrace function: one-touch testing for top user-friendliness

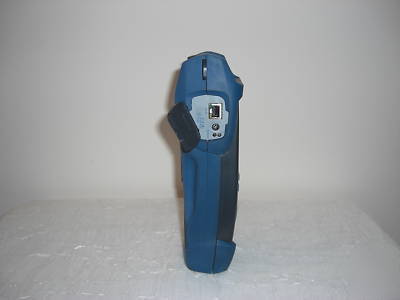

* USB port (memory-stick compatible) for easy data transfer
* Large internal memory (up to 500 results)

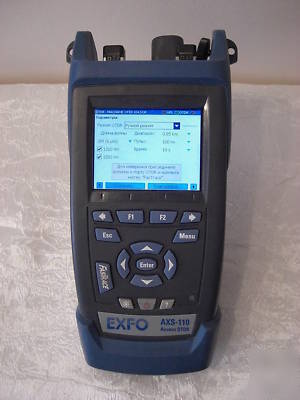

* Transflective color display for viewing clear results under bright sunlight
* Superior automated analysis for a better, easier and faster diagnosis
* Automatic pass/fail analysis and macrobend locating
The AXS-110 OTDR: The LAN/WAN Test Solution
Easy Location and Characterization of Events
The AXS-110 OTDR models help you boost test productivity for inside-plant applications. Its exceptional 0.8 m event dead zone enables you to easily locate and characterize all events between the transmitter and the central office s fiber, access and FTTH network applications, where events are usually closely spaced.
Multimode and Singlemode Flexibility
The AXS-110 All-Fiber OTDR combines singlemode and multimode functionalities, ideal for premises/private/enterprise network testing. Test multimode fiber within premises, or singlemode fiber between premises all with a single OTDR unit and maximize your return on investment.
End-to-End PON Characterization
The AXS-110 OTDR models let you test through high-port-count splitters even 1 x 32 splitters perfect for passive optical network (PON) testing.
AXS-110 All-Fiber OTDR: Key Advantages
* Perfect tool for tier-2 certification of premises network
* Pass/fail features that comply with industry standards such as TIA 568c and IEEE 802.3ah
* Highest dynamic range of the industry for a handheld OTDR
* Power meter option, for crosschecking the total loss using the built-in OTDR laser in continuous source mode
The AXS-100 Access OTDR: The Definitive Troubleshooting OTDR
EXFO s AXS-100 Access OTDR combines the industry s leading OTDR technology with power meter functionalities in one powerful handheld unit. Optimized for point-to-point testing of passive optical networks (PON) within FTTx architectures, it offers several wavelength configurations and a wide range of options, for first-class flexibility.
In-Service PON Troubleshooting Option
The AXS-100 Access OTDR is specifically designed for in-service PON troubleshooting. It features an optional dedicated port for testing at 1625 nm incorporating a filter that rejects all unwanted signals (1310, 1490 and 1550 nm) that could affect the OTDR measurement. The filter only lets through the 1625 nm OTDR signal, ensuring accurate OTDR measurements. In-service OTDR troubleshooting of optical fiber does not interfere with the normal operation and expected performance of the information channels. EXFO s AXS-100 does not interfere with the CO s laser transmitters, as it uses an out-of-band wavelength, as per the ITU-T L.41 recommendation (Maintenance Wavelength on Fibers Carrying Signals).
Unique Trace Analysis Software Features, for Fast, Reliable Results
AXS-100 series OTDRs make link assessment a fast, simple task, providing unparalleled ease of use, even for technicians with little background in optical/OTDR testing. Designed for boosting OTDR testing efficiency, whether for multimode or singlemode applications, the AXS-100 software offers:
Full access to OTDR traces from major test equipment manufacturers
Based on the universal Bellcore format (.sor, Telcordia SR-4731), the software lets you access OTDR traces from various test and measurement manufacturers. You can therefore seamlessly switch to the AXS-100 series and still refer to your previously archived OTDR files.
The AXS-100 offers a smart software option that provides pass/fail status at all wavelengths, as well as span loss, ORL, fiber length and macrobend locations in a single window. View all your test results at once, and enjoy fail-safe OTDR post-analysis.
Faster acquisition five seconds
Spend less time retrieving your OTDR traces, speeding up your test cycles.
Best-in-class software analysis
EXFO s leading expertise in OTDR testing and trace analysis lets you benefit from high-end software in a handheld unit. Focus on what s real: generate a list of all events actually present on the link.
The Fiber Technician s Complete Test Set Value-Added Options
Performing complete access network testing also means testing the delivered service. With the AXS-100 s IP testing option, you can perform basic IP verification that will facilitate future troubleshooting operations.
Ideal for easily identifying macrobends, bad splices or bad connectors, this option delivers built-in 650 nm visual fault location on a universal connector.
Save time on the field with automated software analysis functions. Let the instrument work for you. This software package combines automatic macrobend detection, pass/fail and fault finding features. It enables you to access all your results at once and easily check link status. A single summary screen shows you detailed pass/fail status, fiber-length measurements and pinpoint macrobend localization.
In any optical network, connectors should be kept clean and in good condition which is not always easy in outside conditions. You can quickly and easily inspect fiber ends or connectors using a fiber inspection probe, and view the endfaces on the AXS-100 s high-resolution display. Then, save your image captures for future documentation purposes.
Fast-Track Data Post-Processing with FastReporter Software
The optional FastReporter software package provides you with the post-processing tools and functionalities you need to meet such challenges, whatever the application. Designed for off-line analysis of field-acquired data, FastReporter offers a truly intuitive graphical user interface, which contributes to boosting productivity.
Automate repetitive operations on large numbers of OTDR test files, and optimize your productivity. Document an entire cable in a matter of seconds. Adjust your cable parameters and detection thresholds and perform batch analysis. Open OTDR files from various vendors equipment and convert them to the universal Telcordia format.
Analyze an entire cable in just two steps. View data for all events on all fibers, and at each wavelength, on a single screen.
Live Templating for OTDR Testing
Benefit from one-step file management at any wavelength. Keep full control by adding or removing events manually, or add/remove events automatically using a reference. Get uniform, detailed cable reports.
Choose from various report templates, including loss and ORL, OTDR, PMD, CD and fiber characterization. Generate comprehensive cable reports in PDF, Excel or HTML format.
Time Savers from EXFO s OTDR Viewer Software
This free software brings you key data post-processing features such as:
* Pass/warning/fail threshold setup, which helps you meet ribbon and multifiber validation specifications
* Multifiber testing using the Template Trace mode, which dynamically compares new OTDR results with a trace you assign as a referenc
