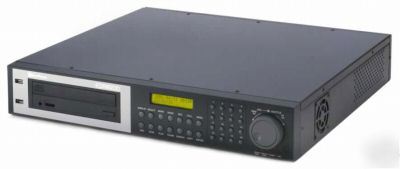

Everfocus EDVR16D1-750 digital video recorder dvr 750GB
Manufacturer: Everfocus Model/Part #: EDVR16D1-750
Resolution D1: 720x480 D1: 720x576
Half-D1: 720x240 Half-D1: 720x288
Video Inputs 16 BNC camera inputs, 1 Vp-p/75ohm
Video Outputs 16 BNC loop-through outputs, 1 Vp-p/75ohm
1 BNC Main Monitor output, 1 Vp-p/75ohm
1 BNC Call Monitor output, 1 Vp-p/75ohm
Display Options Full, 4, 7, 9, 10, 13, and 16 screens for Live and Playback
Internal Storage up to 2 internal 3.5" SATA hard drives
Record Mode Normal, Schedule, Alarm, and/or Motion recording
Record Rate D1: 30 FPS D1: 25 FPS
Half-D1: 60 FPS Half-D1: 50 FPS
Motion Detection Configurable 28x22 grid and adjustable sensitivity for each camera
Alarm Inputs 16 programmable inputs (N.O. or N.C.)
Playback Mode Play, Pause, Fast Forward, Slow Forward, Fast Reverse, Slow Reverse
Playback Search By Date/Time or By Event (Motion, Alarm, Video Loss)
Archive USB 2.0 port for flash memory device
Configuration Menu Driven On-Screen Display
User Interface Included: Front Panel keypad, Shuttle/Jog wheel, IR Remote Control, IE for Remote Viewer
Optional: USB mouse, EKB500 keyboard, PowerCon 4.2
Timer Built-in realtime clock with Time-Synchronization via NTP Server
Title 12-characters per camera
Ethernet RJ45 port for network communication
RS-232 DB-9 connector for testing purposes
RS-485 2 RJ45 ports for PTZ and/or keyboard connection
Dimension inches: 16.9 (L) x 15.8 (W) x 2.8 (H)
mm: 430 (L) x 402 (W) x 72 (H)
Weight Approximately 14 lbs / 6.42 kg
Operating Temperature 32 F ~ 104 F / 0 C ~ 40 C
