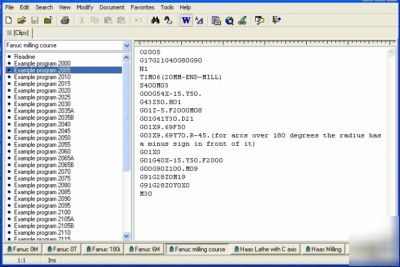

Cnc milling g code programming software
A complete cnc milling programming package for beginners and experienced programmers.
* CNC miling programming software.
* Wizards module automatically computes many of your machining coordinates, like holes on pcd etc.
* Macro module for pasting Custom Macro B code into your cnc programs.
* 38 G code cnc milling training programs.
Windows 95/98/2000/2003/NT4/ME/XP/XP64/Vista/Windows 7
Adapt the programs to suit your requirements.
This software is intended for people with at least a basic knowledge of cnc milling, like a cnc operator wanting to progress to cnc programming, or a cnc programmer wanting to learn Fanuc style programming.
Also, free simulation software to test your programs (only simulates basic programs, not suitable for using sub programs or macros).
The programs will run on cnc milling machines that use G code programs, including Fanuc, Haas, Mazak, Yasnak and Mitsubishi. Fanuc 0M controls will not run the macro programs. All of the programs are for 3 axis machines.
PLEASE NOTE:- You will receive the editing software as a download, and other software in a 1 megabyte compressed (zipped) email attachment.
Also, you will receive a manual containing all of the component drawings, as a pdf file (Adobe reader can be downloaded for free at their website). Below, is a list of the programs included.
* Three drilled holes randomly spaced
* Three reamed holes randomly spaced
* Raised profile with circular arc
* Circular boss using arc approach and depart
* Milling of counterbored holes using I or J
* Linear hole pattern using sub programs
* Linear hole pattern using macro grid program
* Linear offset hole pattern using sub programs
* Tapped holes randomly spaced
* Milling of raised square boss
* Tapped holes on linear hole pattern
* Row of equally spaced reamed holes
* Profiled recess with circular arc
* Two identical profiled shapes using sub program
* Rounding / chamfering corners
* Two rows of holes using sub program
* Milling slots with sub program
* Milling slots with macro program
* Two identical profiled shapes using mirror imaging
* Four identical profiled shapes using mirror imaging
* Two bolt hole circles using macro program
* Holes in line on angle using macro program
* Rectangular pocket with corner rads using macro program
* Circular and rectangular pockets using macro programs
* Linear offset hole pattern of tapped holes using sub programs
* Holes on a pitch circle diameter
* Two double bolt hole circles tapped, using bolt hole circle macro
* Two double bolt hole circles on different levels, using bolt hole circle macro
* Two identical profiled shapes with one rotated at 30 degrees
