> Ics chips: DM74LS245WM 3-state octal bus transceiver

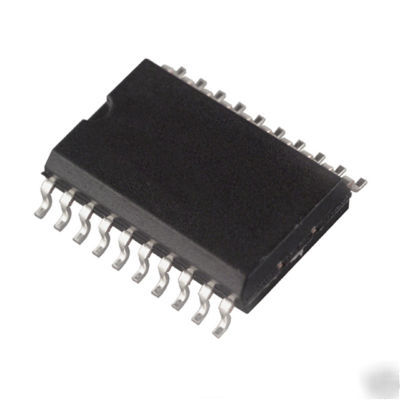

Ics chips: DM74LS245WM 3-state octal bus transceiver
- Bi-Directional bus transceiver in a high-density 20-pin
- 3-STATE outputs drive bus lines directly
- PNP inputs reduce DC loading on bus lines
- Hysteresis at bus inputs improve noise margins
- Typical propagation delay times, port-to-port 8 ns
- Typical enable/disable times 17 ns
