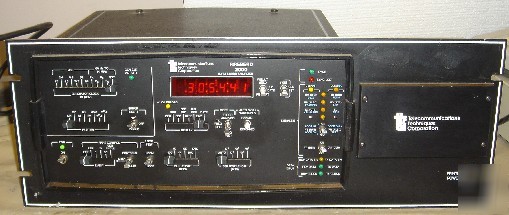

Ttc fireberd 2000 data error analyzer - rack mount
TTC Fireberd 2000 Data Error Analyzer
Includes Rack Mount & Front Cover
Can be used to test both Data Terminal Equipment or Data Communications Equipment...
The TTC FIREBERD 2000 data error analyzer can be used to test both Data Terminal Equipment or Data Communications Equipment, if used with the appropriate interface. The fully independent transmitter and receiver allows loop-around or end-to-end testing. It can measure BER at any data rate between 100 bps and 14 Mbps. It is also capable of measuring transmit frequency, receive frequency, or the frequency of a signal input through its rear panel BNC input. An oscilloscope can analyze data further by connecting to the FIREBERD 2000's rear panel test points. Other features include a real-time clock, automatic data polarity detection, automatic synchronization, and the ability to count through error bursts.
* Test Pattern: Pseudorandom sequences of 63, 511, 2047, 215-1, and 220-1; all marks, all spaces and 1:3; QRSS pattern provided by T1 interface
* Interface Emulation: DTE or DCE
* Bit Rate: 100 b/s to 14.0 Mb/s with appropriate interface
* Internal Standard Clock Frequencies: 1.2, 2.4, 4.8, 9.6, 19.2 56, 64 kHz, 1.544, 2.048, 3.152, 6.312 MHz
* External Clock: Accepts external clock through the data interface module or a rear panel BNC connector
* Frequency Counter: 200 Hz to 16 MHz
* Block Length: .4, 1, 4, 10, 40 and 100 k bits
* BER Test Length: 105, 106, 107, 108, 109 bits and Auto
* BER Range: 1.0 x 10-10 to 1.0 x 10-0
* Error Insertion: Single logical errors or a constant 1.0 x 10-3 rate
* Real-Time Clock: Date and time clock, battery powered
* LED Indicators DTE Mode: Sync, Sync Lost, Gen Clk Actvy, DM (DSR), RR (RLSD), CS (CTS), TM, Rcv Data Inv, Rcv Data and Rcv Clock
* LED Indicators DCE Mode: Sync, Sync Lost, Gen Clk Actvy, TR (DTR), RS (RTS), LL, RL, Tx Data Inv, Tx Data and Tx Clock
* Printer Interface: RS-232 serial ASCII format
Audio Indicator: Beeps on the occurrence of errors, sync losses, and BER measurement completion
Original List Price: $6995.00
