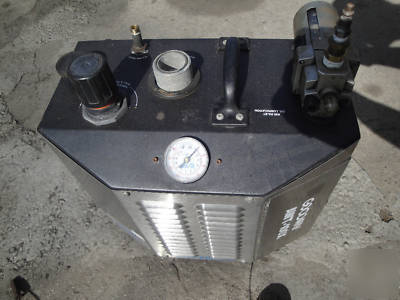

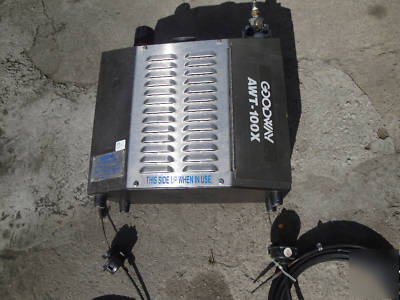

Goodway awt-100X tube cleaner
The AWT-100X Air Powered Tube Cleaner is most powerful unit. It incorporates the same operating principles as the AWT-100. Equipped with a 4 HP (3 kW) drive motor, this machine has the strength needed to clean virtually any tube/pipe " (6.4mm) I.D. and up. Flexible shafts and accessories are available for both wet or dry applications.

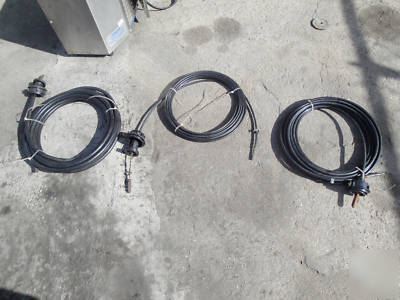

The AWT-100X uses a cleaning tool mounted to the tip of a flexible shaft. For wet applications, the unit feeds water through the casing to the cleaning tool, flushing out deposits as they are loosened. For dry applications, the GTC-DPA Dry Pickup Attachment and a simultaneous vacuum are used to remove loosened deposits.

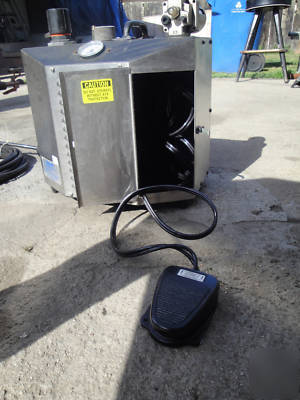

AWT-100X Heavy-Duty Air Powered Cleaner including air lubricator, adjustable speed/torque control, mobile dolly, tool storage box, and foot switch.
. Flexible Shaft Speed: Variable, 500-3,000 rpm
. Motor Power: Up to 4 HP (3 kW) depending upon air pressure and volume
. Air Requirements: Minimum 60 PSI at 85 CFM
(4.1 BAR at 2.38 m3/min), Maximum 100 PSI at 130 CFM (7 BAR at 3.64 m3/min)
. Dimensions:37" (940mm) high x 20" (510mm) wide x 17" (430mm) deep
. Weight: 54 lbs (25 kg) net dry
. Air powered - shock resistant
. Simple to operate - minimal training required
. Stainless steel construction - long life
. Air lubricator - extends motor life
. Speed/torque control - set shaft rotation at optimum speed for each application
. Interchangeable cleaning tools - versatile
. Simultaneous water flush or vacuum - removes deposits
. Foot switch activation - safe operation
