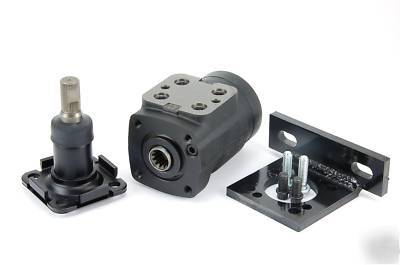

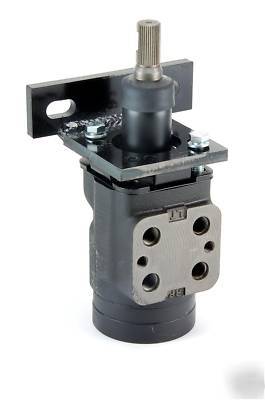

Char lynn rock crawler hydraulic steering valve kit
The steering control unit has the following specs. :
* 5.9 cubic inch displacement
* 2.5 GPM minimum flow requirement. (3.0-3.5 recommended)
* Non-load reaction - suitable for use with all cylinder types
* Four ports with 9/16"-18 O-ring threads (#6)
* 5-1/4" overall height - unit only
* Manual steering check valve for emergency use
The column shaft has 3/4" OD and 36 splines and is 4-5/8" tall from flange to end of shaft.
There are high quality Borgeson ujoints and straight couplings available to fit this column shaft for $80 or I have a rag joint that will connect to it also for $20 extra. Column mounting bolts included.
