New collapsible pallet container stacker -
890 Georgia Hwy 140 East - Armuchee, GA 30105
will negotiate a discounted price with you.
Manufacturer: Elite Equipment, Inc. (Armuchee, Georgia)
Capacity: Five (5) Collapsed Pallets
Unit Dimensions: 109-1/2" Height x 55" Depth x 66" Width
Controls: Main Control Panel with SMART controller
Status Lights: Stack light with three (3) color status notification
Control Type: Panel mounted operator controls
Cycle Time: Ten (10) Pallets per minute
Actuator: Solenoid operated air cylinder
Sensor package: Poximity sensors for lift carriage locator
Vision package: Photo eye sensor for full indication
Power Requirement: 120vac 10amp service

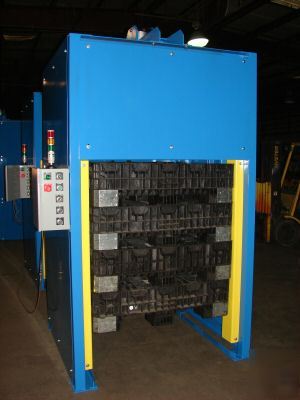

Pallets are presented to the stacker via a pallet jack or fork lift and placed against a back stop inside the stacker enclosure (picture #1 and #2). The operator then presses the cycle start pushbutton which activates the stacker carriage. The carriage arms raise the presented pallet to the hold position (picture #3). When another pallet is placed in the stacker and the operator presses the cycle start button the stacker arms lower stacking the first pallet onto the bottom pallet then raises the pallets to the hold position (picture #4 & 5). When the pallet stacker has filled with five pallets the ready light flashes on the stack light column to indicate the stacker is full. Upon being emptied via pallet jack or fork lift the stacker is returned to operation when the cycle start button is pressed.
Picture #1 Picture #2 Picture #3
(Pallets and pallet jacks are not included in the unit price)
