One head 55ML depositor piston filler filling machine

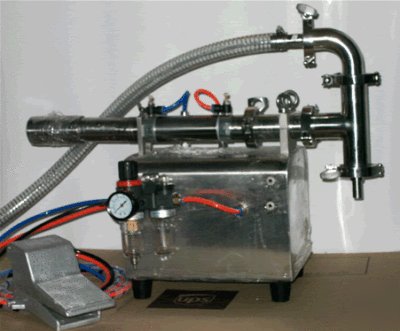

This is a brand new single head piston filler, simplex SVF1-55C volumetric filling machine, made of stainless steel, will be perfectly filling your containers with sauces, creams or liquids, And it has very reliable features and is very easy to use.
You just need to hook up this filler to your compressor and start filling. Put the intake hose directly into your tank or put material into hopper (if available), push the foot pedal to drive the piston forward then release to drive it back, the material is filled into your container accordingly. The filling volume is controlled by handle stem without tools and no need to exchange any parts if you need change the filling volume.
* Stainless steel sanitary tri-clamp connections, connection "T's", check valves and product cylinder , are ideally suited for food, pharmaceutical and specialty industries.
* Tool free strip-down and assembly for easy wash-down ,includes check valves and cylinder.
* Easy to maintain, ready to use.
* The filling body's assembly can be moved in the place where it's convenient for you to fill or where you wish!
* Pneumatic operation is suitable for hazardous areas.
* Easy adjusting fill volume control. when you start to filling, you can screw in or out the handle stem of volume assembly in order to confirm the filling amount what you have selected prior. The filling volume will be controlled by handle stem without tools and no need to exchange any parts, if you need change the filling volume
* Cylinder size:35mm bore diameter 60mm stroke length ,stroke stop adjustable from 20 to 60mm;
* Air cylinder size: 40mm 60mm;
* Adjust Dispensing volumes: 10ml-55ml/one dose;
* Filling Speeds: Up to 30 b.p.m. (depends on the operator experience and product viscosity and filling volume and nozzle size);
* Nozzle inner diameter size: 6mm
* Overall :560mm 260mm 420mm (Length Depth Height)
* The piston filler will be equipped with a compressor which supplies with the air capacity of 85 l/min, (3.0 cubic feet per minute) and 0.5 MPa (80 PSI ).
* US $258.00 fee is charged for all RMA return;
