> Nos 4" diameter round aluminum alloy plug access cover

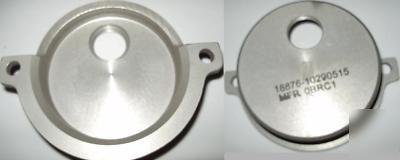

Nos 4" diameter round aluminum alloy plug access cover
Cage Code: Part Number: Company Name:
18876 10290515 U S ARMY AVIATION AND MISSILE COMMAND U.S
MRC: Requirement Name: Requirement:
AARX INSIDE DIAMETER 3.500 INCHES NOMINAL
AAUB HOLE DIAMETER 0.359 INCHES MINIMUM AND 0.375 INCHES MAXIMUM
ABKU FLANGE THICKNESS 0.250 INCHES NOMINAL
ABRY LENGTH 5.500 INCHES NOMINAL
ADNY DISTANCE BETWEEN HOLES ALONG LENGTH 4.750 INCHES NOMINAL
ADPC DISTANCE FROM FIRST HOLE CENTERLINE TO END ALONG L 0.375 INCHES NOMINAL
ADPN FIRST RECESS INSIDE HEIGHT 1.060 INCHES NOMINAL
ADPQ INSIDE CORNER RADIUS 0.060 INCHES NOMINAL
ADPR BODY THICKNESS 0.280 INCHES NOMINAL
ADQB SECURING DEVICE TYPE THREADED FASTENER
ADQK MOUNTING OPENING SHAPE STYLE 1 UNTHREADED HOLE
MATT MATERIAL ALUMINUM ALLOY 356.0
MDCL MATERIAL DOCUMENT AND CLASSIFICATION QQ-A-601,T6 FED SPEC SINGLE MATERIAL RESPONSE
SFTT SURFACE TREATMENT OXIDE FILM
SR-5 DESIGN CONTROL REFERENCE 10290515
STDC SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE
