New carrier comfort controller 6400-i/o CEPL130203-02

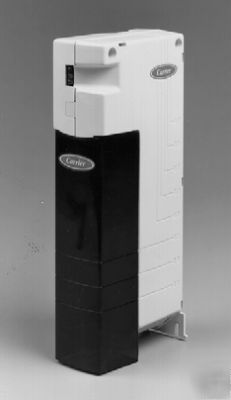

New Carrier Comfort Controller 6400-I/O CEPL130203-02 Part Number: CEPL130203-02 Brand New
The Comfort Controller 6400-I/O (part numberCEPL130203) is used with the Comfort Controller 6400to expand the field point capacity from 16 points (8inputs and 8 outputs) up to a total of 64 points.
Each 6400-I/O can be configured to use all 16 points (8inputs and 8 outputs) or only 8 outputs or only 8 inputs.This provides the ultimate flexibility in usage of fieldpoints to meet the specific needs of each application.Determine the number of 6400-I/O required for yourparticular application. Then simply install the modulesalong with the 6400 in your field-selected NEMA-1enclosure.To determine the number of 6400-I/O required by theparticular application, first decide how many field pointsare required. Then order and install the 6400-I/O(s)along with the 6400 in your field-selected enclosure.This modularity contributes to overall versatility.FEATURES Monitors up to 16 field points. Two LEDs, conveniently located at the top of themodule, indicate processor status (red) and modulecommunication status (green). Local connection for LID. Ability to disable all inputs or all outputs by simplyflipping a switch. Simplified field wiring using plug type terminals(two-pin connection). Optional Comfort Controller 6400-HOA (Hand-Off-Auto) consisting of eight switches that provide youwith the capability to manually override each discreteoutput point.
