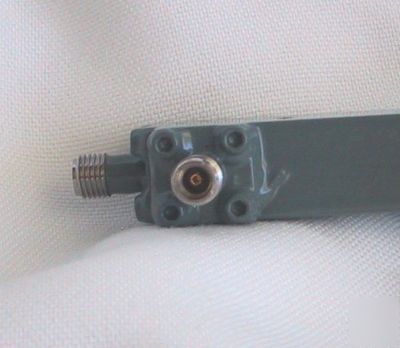

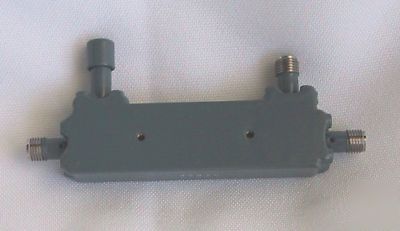

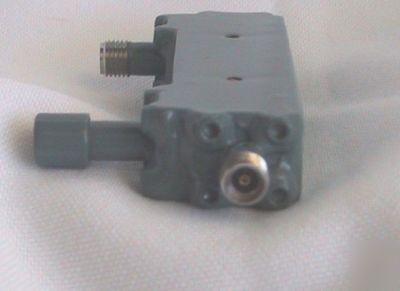

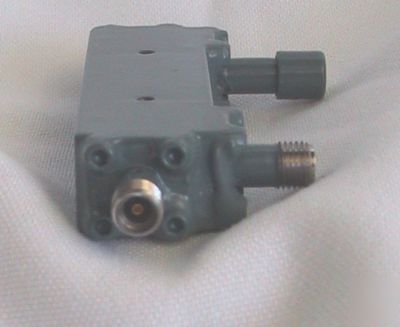

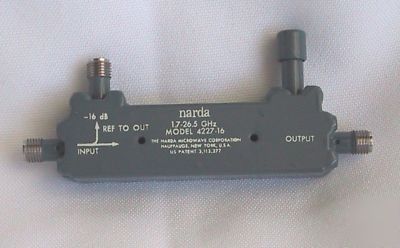

Narda 16 db 4227-16 directional coupler 1.7 – 26.5 ghz
Narda 16 dB Ultra Broadband Directional Coupler
One Directional Coupler that covers 5 frequency bands!
* Ultra Broadband Directional Coupler
* Frequency Range: 1.7 26.5 GHz
* Coupling: 16 dB +/- 1.5 dB
* Insertion loss: 0.8 max, 0.9 dB max (including coupled power)
* VSWR: 1.45 dB max (primary or secondary lines)
* Directivity: 15 dB min (1.7-12.4 GHz) 12 dB min (12.4-26.5 GHz)
* Connectors: air dielectric 3.5 mm
* Maury MW on SMA, 3.5mm, ... connectors:
* http:// /support/faqs/faqs/faq5.html
* Condition: Barely Used - very good condition.
* Cosmetics: 1-2 micro paint chips.
* Electrical Tested: Yes, tested at 17GHz.
* Tests/Results: Worked good.
