Lincoln power wave C300 ready pak welder K2774-1

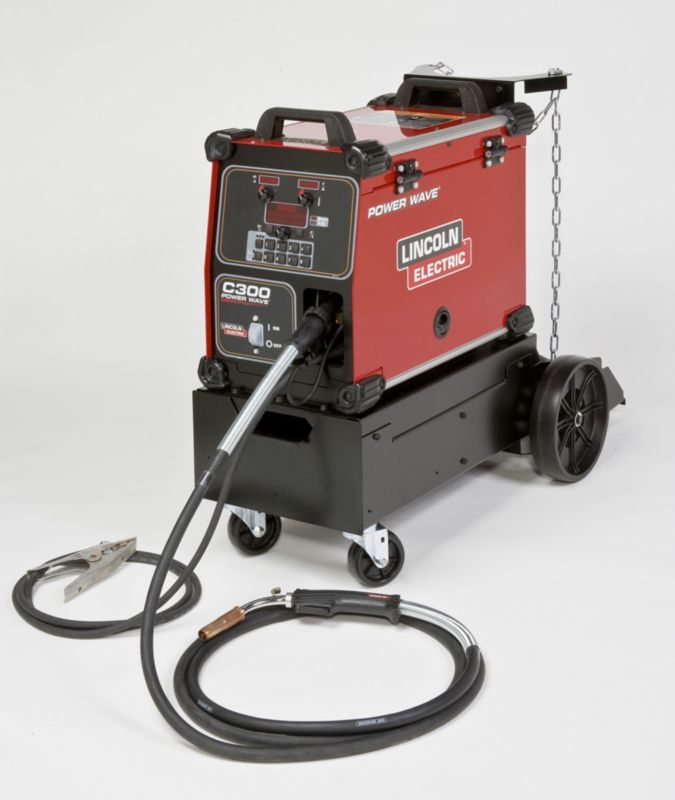

Lincoln Power Wave C300 Ready Pak Welder K2774-1
The Power Wave C300 is a portable multi-process wire feeder welder with high-end functionality capable of Stick, DC TIG, MIG, Pulsed MIG and Flux-Cored welding. It is ideal for a wide variety of materials including aluminum, stainless, and nickel where arc performance is critical. The Power Wave is well suited for production welding, general fabrication, construction, and training and education.
The compact style and design adapt to almost any environment. The size offers the user a flexible system to take with you, wherever you need to weld.
* PowerConnect Technology (Patent-Pending) - Automatically adjusts to input power from 200 - 600V, 50 or 60 Hz, single phase or three phase. Welding output remains constant through the entire input voltage range up to +43% and down to -60% when used on 460 VAC input.
* Tribrid Power Module - Exceptional welding performance at an industry leading 0.97 power factor and 88% efficiency at 250 amps.
* Production Monitoring 2 - Track equipment usage, store weld data, and configure limits to assist in welding efficiency analysis.
* iARC Digital Controls - Fast processing speed provides exceptional arc stability regardless of weld process. Ethernet connection now standard.
* Compact and Durable Case - IP23 rated to withstand harsh environments and maximize portability.
Stick, DC TIG, Pulsed DC TIG, MIG, Pulsed MIG, Flux-Cored
Harris Flowmeter with 10 ft Gas Hose (3100211)
Dimensions (in) H x W x D : 20.4 x 14 x 24
Dimensions (mm) H x W x D : 518 x 356 x 609
