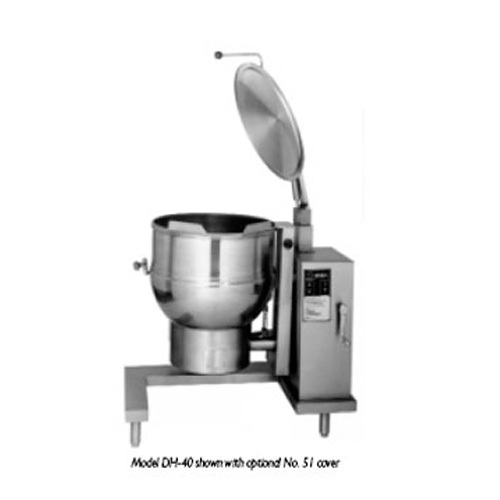

Groen dh-20 tilting kettle, gas, 20 gallon, 2/3 steam j
TIlting Kettle, Gas, 20 Gallon, 2/3 Steam Jacket
Tilting Kettle, gas, 20-gallon capacity, crank tilt, 2/3 jacket, 316 s/s liner, floor mounted control console supports, s/s construction, bullet feet, electronic ignition, 50 PSI, 0 - 2000' elevation, 72,000BTU
* Stainless Steel 2/3 Steam Jacketed Kettle
* Floor Mounted Tilting Self-Contained Gas Heated
* Kettle shall be a Groen Model DH (specify 20, 40, or 60) gallon stainless steel steam jacketed unit, operating with a self-contained gas heated steam source contained within the unit
* Kettle shall be of 18.8 type 304 stainless steel, 316 stainless steel interior solid one-piece welded construction.
* The console and all exposed surfaces shall be stainless steel.
* All controls shall be mounted on the front panel except the thermostat, which is mounted on the trunnion support arm.
* The kettle body shall be mounted in a heavy-duty stainless steel combination kettle support tilt trunnion, which in turn, is supported by the stainless steel enclosed base. The base shall be provided with stainless steel tubular legs with adjustable bullet feet.
* The enclosed support base shall contain a smooth operating, self locking tilt mechanism, and shall be of sanitary, drip proof construction, with interior readily accessible for installation or maintenance.
* The unit shall be furnished with a heavy reinforced bar rim with a welded in butterfly shaped pouring lip for maximum sanitation and durability. Faucet mounting bracket is standard.
* Kettle interior shall be polished to a 180 emery grit finish.
* Exterior of kettle shall be finished to a bright high buff finish, ensuring maximum ease in cleaning and maintaining brilliant appearance.
* A.S.M.E. Code, A.G.A. Design Certified Unit shall be A.S.M.E. shop inspected, stamped and registered with the National Board for operation up to a maximum working pressure of 50 PSI. Unit shall be design certified by the American Gas Association. (Natural and Propane only.)
* Unit shall be designed and constructed to meet NSF and known health department and sanitation codes. and be NSF listed.
* A 2" tangent drawoff is optional. (Add T to model designation DHT). If drawoff is specified, outlet shall be equipped with removable 1/4" perforated stainless steel strainer
* Self-contained Steam Source Kettle shall have a gas-heated (natural, butane, propane) self-contained steam source to provide kettle temperatures of 150 to approximately 295?F. Unit shall be factory charged with chemically-pure water and rust inhibitors to ensure long life and minimum maintenance.
* Controls shall include a thermostat, pressure gauge, safety valve, pressure limit control, water sight glass, low water cut off, a gas regulator valve and electronic ignition module. Power ON switch, Power ON indicator light, LOW WATER indicator light, and HEATING light are mounted on the kettle support side console.
* Gas supply shall shut off automatically when unit is tilted.
* Patented fin tube burner assembly delivers 62-65% efficient combustion, depending on size, 20 Gallon Model has 72,000 BTU/HR firing rate with 44,140 BTU/HR into the product 40 Gallon Model has 100,000 BTU/HR firing rate with 65,000 BTU/HR into the product, and 60 Gallon Model has 150,000 BTU/HR firing rate with 93,000 BTU/HR into the product.
* Electronic ignition to standing pilot is standard on all models.
* Unit shall be thermostatically controlled to automatically shut off when desired temperature is reached and turn on when product temperature drops below setting.
* Unit requires 1/2" IPS gas line connection and 115 volt electrical connection.
* No remote steam source required.
