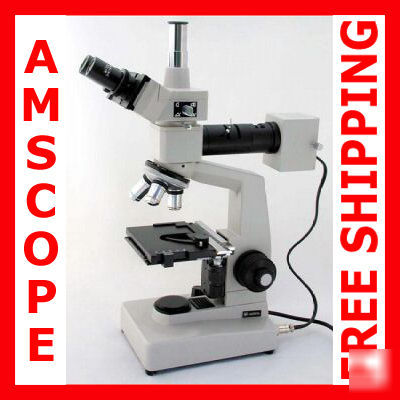

Trinocular metallurgical metallographic microscope
Brand Name: AmScope Model No: ME300T Retail Value: $2,200
scope. We provide immediate support for any issues regarding your microscope WE HAVE
* A professional metallurgical metallographic microscope!
* EPI-illumination reflected light microscopy system
* Photo/video capability with 23mm universal/standard photo port
* 30 inclined 360 rotatable sliding trinocular head
* Six levels of magnification, 40X, 64X,100X, 160X, 400X & 640X
* Three DIN standard Plan objectives included
* Two sets of eyepiece included
* Three color filters, yellow, blue & green, included
* Intensity-variable halogen EPI-illumination
* Four EPI-illumination filters included
* Large mechanical stage with stain resistant finish
* Low position stage traveling controls
* All metal mechanical parts
* Coaxial coarse and fine focusing
* Dual side focusing controls
* Focusing tension control mechanism
* 30 inclined 360 rotatable trinocular head
* Adjustable diopters on both eye tubes
* Spare bulb, fuse, bottle of immersion oil, and dust cover included
* Lowest price guaranteed or the difference back!
* Focusing Range: 1-9/16" (40mm)
* Interpupillary Adjustment Range: 2-3/16" - 3-0" (55 - 75mm)
* Head: 30 inclined trinocular
* Camera/Video Trinocular Port: 23mm universal/standard photo tube
* Eyepieces: WF10X (18mm Field of View), P16X (11mm)
* Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (Spring, 0.65 NA)
* Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
* Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
* Vernier Division: 0.004" (0.1mm)
* Illumination: halogen lamp, 6V/20W
* Power Supply: 115V, CE certified
* Power Supply: 110V (Adapter for 220V version available), CE certified
* One Binocular Metallurgical Microscope Body with EPI Illumination
* One Pair of Widefield 10X Eyepieces
* One Pair of Widefield 16X Eyepieces
* Three Filters: Yellow, Blue & Green
The accessories below are compatible with the above microscope. They can boost your microscope with extra features! Click on the items you are interested in for detail or purchase.
