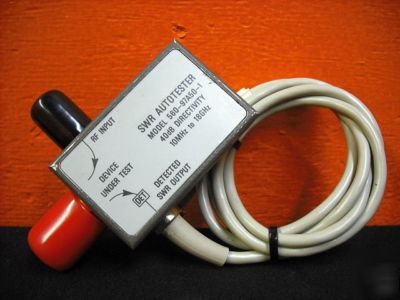

Anritsu/Wiltron 560-97A50-1 SWR Autotester
The 560-97A50-1 SWR Autotester integrates a high directivity bridge, a detector, a low reflection test port, a precision reference termination, and a connecting cable. The 560-97A50-1 is a broadband microwave measurement component that is used with the Model 56100A and 562 Scalar Network Analyzers and with Series 541XXA, 540XXA, and 54XXA Scalar Measurement Systems for making fixed-frequency and swept-frequency return loss (SWR) measurements. Return loss measurements are used over a wide range of radio and microwave frequencies to check the performance of systems, subsystems, and microwave components such as amplifiers, directional couplers, attenuators, filters, splitters, and terminations.
* Frequency range: 10 MHz to 18 GHz
* Input Port Impedance: 50
* Detector output polarity: negative
* Cable Length: 122 cm (4 ft.)
