3 watt mono audio amplifier kit military receiver 8066
3 WATT MONO AUDIO AMPLIFIER KIT MILITARY RECEIVER 8066

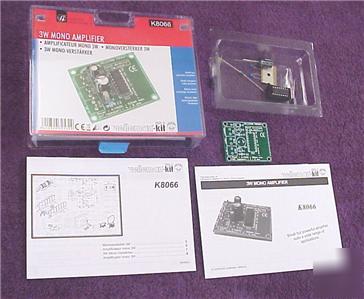

VELLEMAN K8066 MONO AUDIO AMPLIFIER KIT
Well engineered kit with instructions and schematic for almost sure fire construction. You will need to supply construction/ soldering tools, case and minor items.
This would be useful to use with those surplus receivers that had weak audio.
The basis of the kit is an audio IC TCA7267A.
3 WATT MONO AMPLIFIER . Small but powerful amplifier suits a wide range of applications such as: microphone amp, for doorbells, intercom, sound effects, earphones, radio receivers, PC sound card, musical instrument, etc.. 3 Watt RMS. Freq range: 50Hz - 20KHz. Gain: 32DB (40X). Short circuit & thermal protection.
Current consumption 500ma max.
