New icom hm-175GPS speaker microphones for ic-92AD

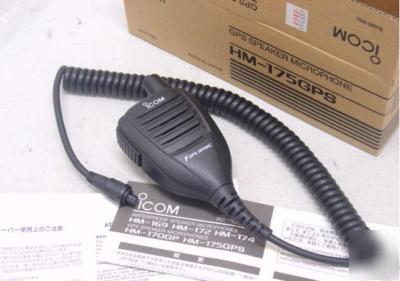

ICOM HM-175GPS Speaker Microphones for IC-92AD
The microphone has outstanding protection against dust and water that is
equivalent to IP57 (1m (3ft)/30min). The microphone can withstand submersion
in 1m (3ft) depth of water for up to 30 minutes and has dust-tight construction
that prevents the ingress of dust.
Improved speaker audio quality and loudness.
Includes high-performance GPS receiver.
Power supply requirement : (Supplide from transceiver) 5.0V
Current drain : (at 5V) less than 65 mA
Operating temp. range : -30 to + 60 (-22 F to + 140 F)
Dimensions : (cable/joint/belt clip not included) W 62 H 105 D 40mm
Curly calble length : 300mm 20mm
Weight (approx.) : (cable/joint/belt clip included) 220g
Speeker : Impedance 8 , Rated input 1 W at 5% distortion (max. 2W)
TTFF (Time to First Fix) : Cold start 40 sec. typical, Hot start 4sec. Typical
The manual is a Japanese version.
The manual of an English version can be downloaded on the internet.
(http;//www.icom.co.jp/world/index.html)
The guarantee is effective only in Japan for one year.
About 5 7 Business delivery day.
In the case , the duties that occurred of receipt other people because you,
